NTS-4000-R-GPS NTP Server
Rackmount, dedicated secure Stratum 1 GPS NTP server, active antenna and software for uni-cast or broadcast time synchronisation
- True Stratum 1 NTP Time Server
- GPS time reference input
- Configured over the network
- Handles >3,000 NTP requests per minute
- Solid State memory eliminates 'disk failure'
- Industry leading 6 year warranty
- Syslog error reporting
- Free product lifetime support

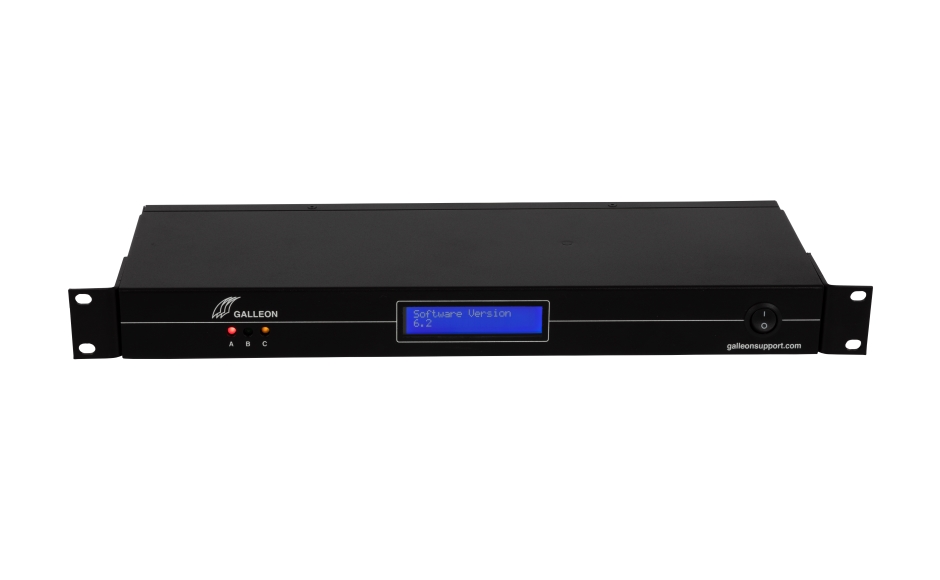

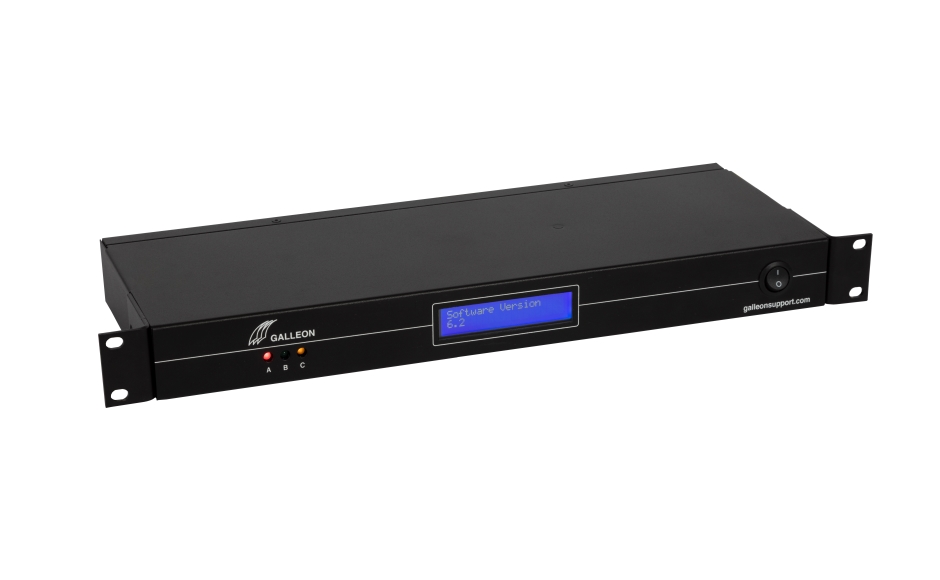

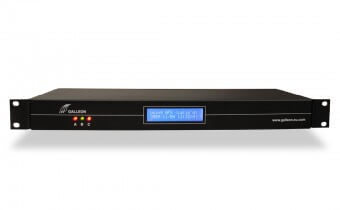

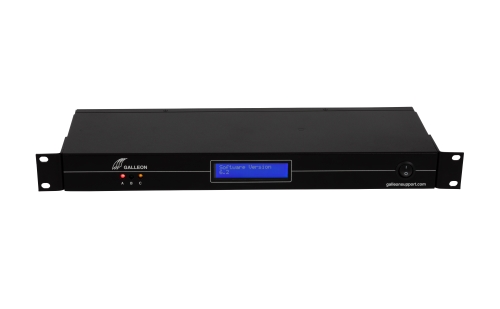

NTS-4000-R-GPS NTP Time Server
A complete solution for GPS network time synchronisation
The NTS-4000-R-GPS NTP Time Server combines a GPS receiver with an embedded solid state computer running Galleon Systems' proprietary, secure operating system.
The unit connects directly to your network via a CAT5 Ethernet connection and fits in a standard 19" rack (a standalone version of the NTS-4000-GPS is also available). This GPS network timing solution incorporates a GPS computer clock and a highly accurate remote GPS antenna that tracks up to 12 satellites for greater precision. The antenna is fully weather proof (IP65) as it must be installed externally, preferably on a roof top with a 360° view of the sky, it can be positioned up to 200m (600 ft) away as standard, or up to 1,000m (3,000ft) using an optional antenna extension kit.
The NTS-4000-R-GPS has an LCD display to show run-time information for both the GPS subsystem and the NTP server and to aid installation. The Software drivers conform to the Network Time Protocol and are available for uni-cast, broadcast or multi-cast NTP time synchronization. Configuration and management of the unit is straight forward via a network interface. The IP address of the unit can be configured by using DHCP to assigning an IP address automatically or a fixed IP address can be used.
Key Benefits
- Ready-to-operate Secure Stratum 1 NTP Time Server
- 6 year warranty
- Includes GPS active antenna
- Support for NTP and SNTP compatible clients
- Can handle more than 3,000 NTP requests per minute, ideal for small to medium networks
- Easily configured via a windows configuration utility
- Solid State Flash memory enables software upgrades and eliminates 'disk failure'
- RJ-45 Ethernet interfaces 10/100 MBit
- Front Panel display for Time and Satellite Status
- Syslog error reporting
Key Features
Product Specification for the NTS-4000-R-GPS time server
Receiver:
Active 12 channel GPS Antenna
Timing Accuracy:
Network: ± 12 milliseconds, typical
GPS: <1 microseconds, relative to UTC
NTP Time Requests:
>3,000 requests per minute
Supported Networks:
Can supply time to a single network
Power Consumption:
8 Watts
Housing:
Standard 19" rackmount (1U)
Dimensions (H × W × D):
45mm × 423mm × 163mm
Display:
LC-display, 2 x 20 characters, with backlight
Operating System:
Proprietary
Protocols (NTP & SNTP):
NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)

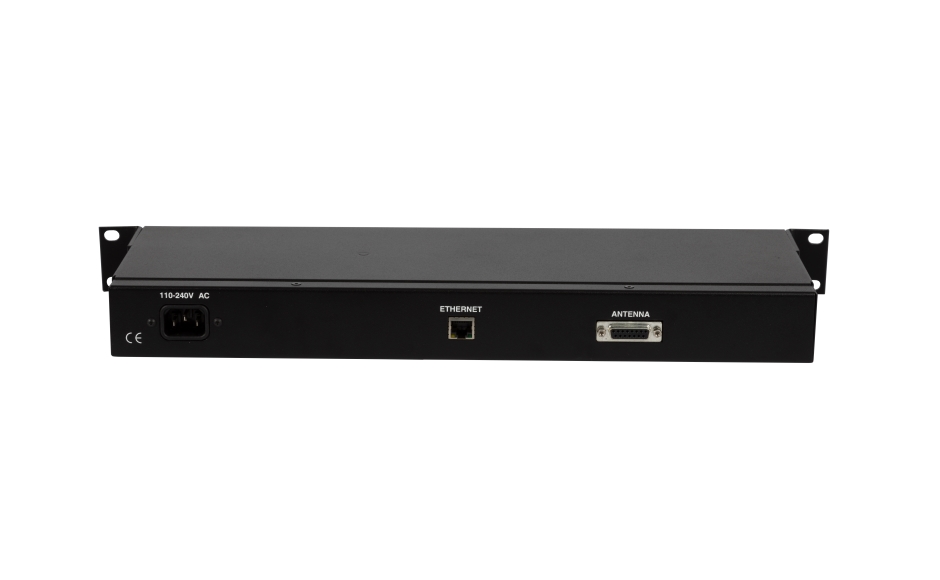

Network Interface:
Single RJ-45 Network Connection 10/100 MBit
Power supply:
85 - 260V, 47 - 63Hz
Operating Temperature:
0-50°C / 32-122°F
Operating Humidity:
Max. 85%

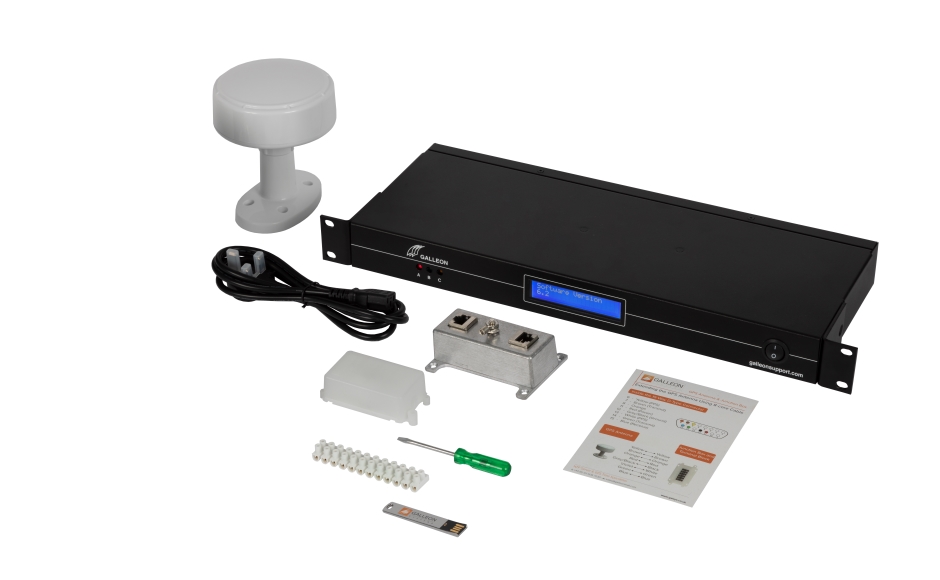

What's in the Box
- NTS-4000-R-GPS Unit
- GPS Mushroom Antenna (with a 10m/8 Core Cable - not shown)
- Instruction Manual
- Power Lead
- NTP Software CD
- Junction Box (used to extend antenna cable - if necessary)
- IDC Cable Tool (used to insert cable into the junction box- if necessary)
Additional Extras
The following products are also available for use with the NTS-4000-R-GPS NTP Time Server:
- Gold and Premium Support Packages
- Digital Wall Clocks
- Secondary MSF Antenna
- Antenna Cable (100 to 1,000 metre rolls available)
- Additional Antenna Power Supply (Recommended from 150 metres onwards)
- Lightning Arrestor
- Additional Software Licenses (available from 5 to 300+ clients)
