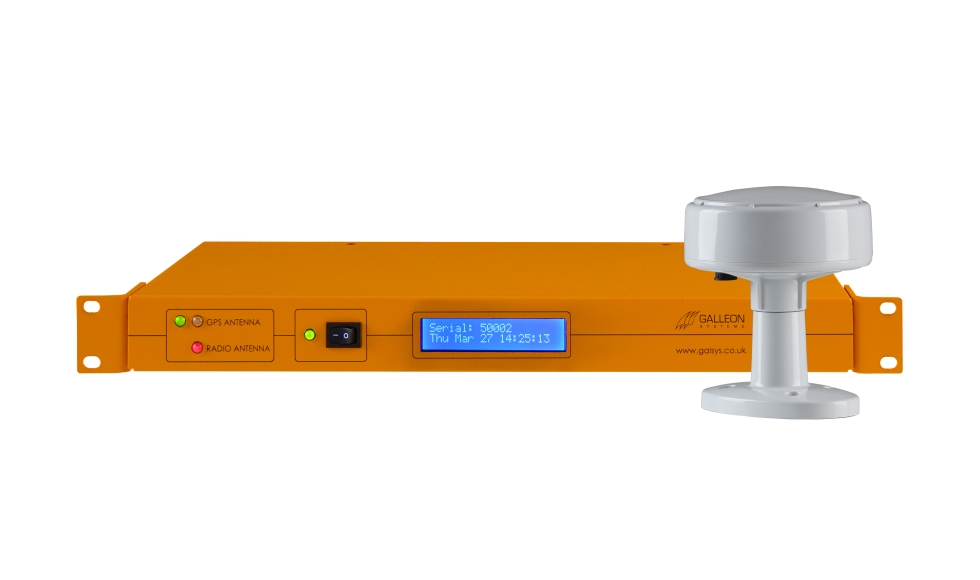

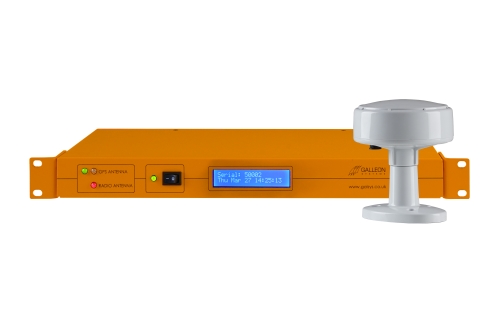

NTP Enterprise Time Server, GPS
High-Performance Stratum 1 Time Server for Large Enterprise Networks
Run your organisation on precise time with this high-performance, third-generation Galleon time server. The GPS Stratum 1 NTP server uses pulse-per-second (PPS) locking to ensure maximum timing accuracy. The GPS antenna’s built-in 72 channel timing receiver further enhances precision, giving you confidence in the synchronisation of thousands of networked devices.
- True Statum 1 NTP Enterprise Time Server
- Handles >500,000 NTP Requests Per Minute
- GPS Antenna with 72 Channel Timing Receiver
- Pulse-Per-Second Locking

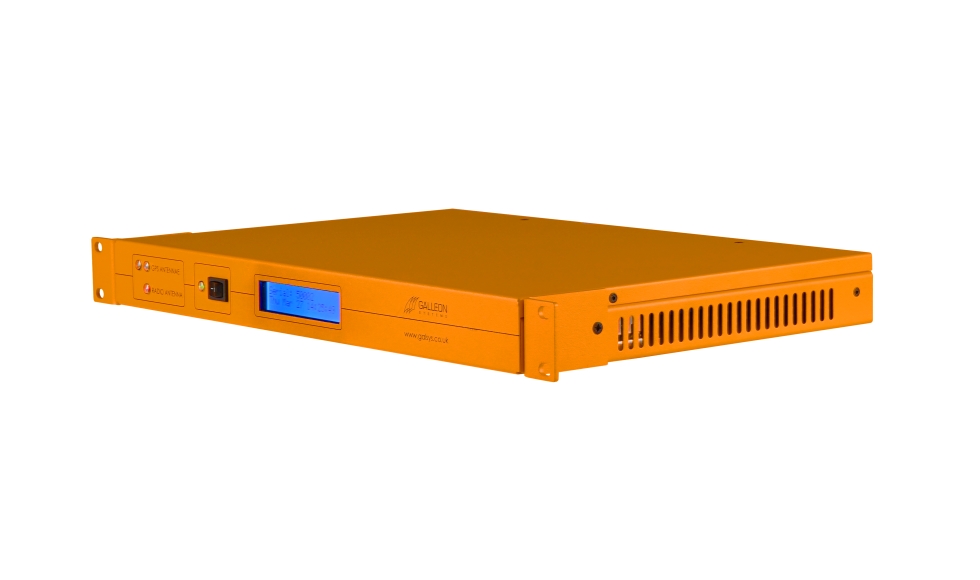

- 1U Chassis for 19" Rack Installation
- GPS and Radio Time Inputs
- Industry-Leading 6-Year Warranty
- Free Product Lifetime Support
Use a GPS NTP Enterprise Time Server to Securely Synchronise Thousands of Devices with Redundancy
The NTS-7001-GPS can handle over 500,000 NTP requests per minute across a network with redundancy, or across two separate networks. Ideal for large enterprises, datacentres, financial institutions, hospitals and more.
Simply mount the NTP enterprise time server in a 19" rack and connect it to your network with a CAT5 Ethernet connection. You can position the GPS antenna up to 1,000 metres away (with optional cable rolls) with a clear view of the sky. The NTS-7001-GPS supports multi-GNSS satellite network compatibility, including GPS, SBAS and QZSS. You can also request dual GPS and radio antennas to use a back-up radio time source.
Galleon Systems has over 32 years’ experience manufacturing NTP servers, clocks and software for customers like Vodafone, Ford and HSBC. You get lifetime technical support, a 6-year warranty and the peace of mind that comes from a proven manufacturer.
The Galleon 7000 series is also available in a dual power supply model.
Key Benefits
- Pulse-per-second locking for precise synchronisation – 0.01ms accuracy
- Includes a GPS antenna and can support a secondary antenna for radio time signal
- Compatible with NTP and SNTP clients, supporting NTPv1, NTPv2, NTPv3 and NTPv4
- Supports SNMP v1, v2c and v3
- Supports IPv4 and IPv6 internet protocols
- Compatible with HTTPS, HTTP and SSH

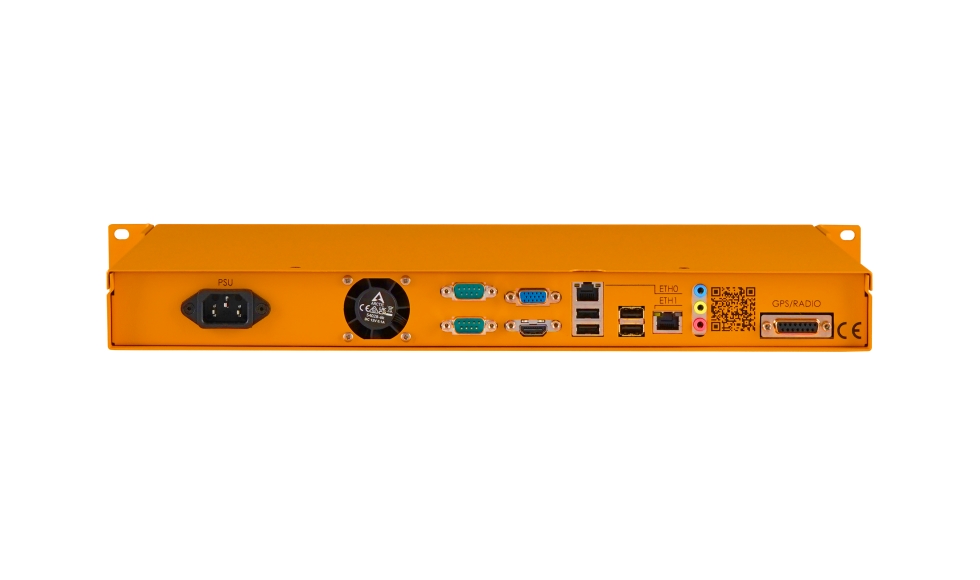

- Dual 10/100/1000 Mbit RJ-45 Ethernet ports
- Supports NIC teaming for failover and redundancy
- Handles over 500,000 NTP requests per minute, per port
- MD5/SHA1 authentication for enhanced security
- Able to peer with other NTP servers for enhanced synchronisation security and redundancy
- Solid state flash memory enables software upgrades and eliminates 'disk failure'

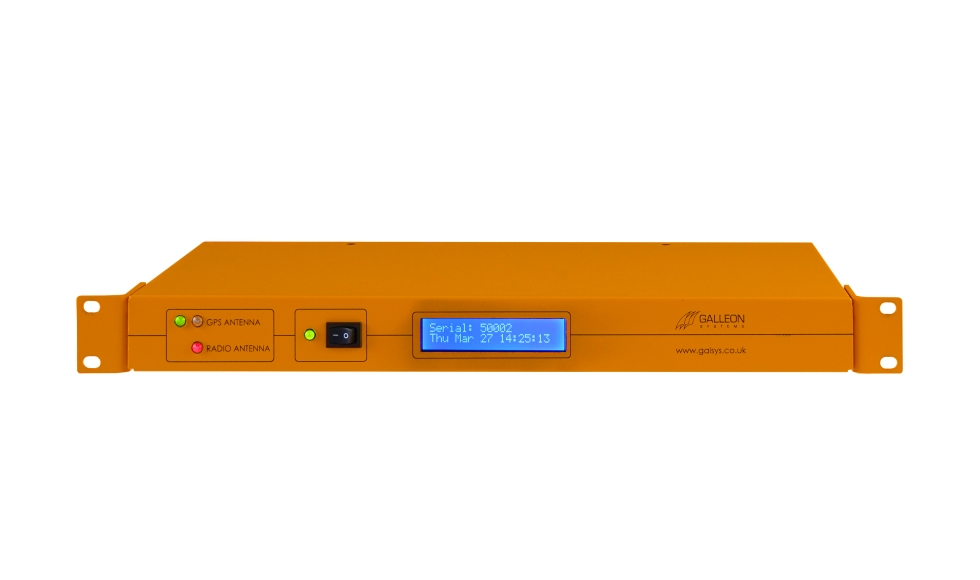

- Front panel display shows time, satellite status, and radio time signal status
- Syslog error reporting
- 6-year warranty
Key Features
Product specification for the NTS-7001-GPS NTP enterprise time server
Protocols - NTP & SNTP
NTP v1 (RFC 958)
NTP v2 (RFC 1119) NTP v3 (RFC1305)
NTP v4 (RFC 2131)
SNTP v3 (RFC 1769) SNTP v4 (RFC 2030)
Configuration
Across a Network via Secure Browser
Configuring
HTTP, HTTPS (RFC2616) Secure Shell (SSH)
Technical Standard
NEMA 0183 V.2 Compliant
SNMP
Simple Network Management Protocol (Can Be Switched OFF)
Network Interface
Standard 10/100/1000 Base-T, Dual RJ-45 Network Connections
MTBF Estimated
55,000 hrs
Display
LCD with Backlight
Operating System
Linux Based
Operating Temperatures
0-50°C (32-122°F)
Humidity
Max. 85% Non-Condensing
Heat Dissipation
150 BTU per Hour
Function
Stratum 1 Time Server, Secure Shell (SSH) and HTTPS
Network Accuracy
Network: 4 Milliseconds, Typical
GPS: <10 Microseconds, Relative to UTC
Security
MD5 and SHA1 Authentication
NTP Time Requests
500,000 per Minute
Power Supply
Mains Powered - 85-260V, 47-63Hz
Power Consumption
34 Watts
Mounting
1U Chassis for 19" Racks
Dimensions (mm)
Unpacked 1U: (H) 45 (W) 485 (D) 290
NIC Teaming
Failover Protection and Redundancy
Properties
Powder Coated Steel
PPS Locked
Yes
Weight Packed
7.6 kg (16.7 lbs)
Unpacked with Antenna
4.8 kg (10.6 lbs)
Source
Satellite and/or radio
External
Active 72 Channel GPS
What's in the Box
- NTS-7001-GPS Unit
- Power Lead
- Junction Box – To Extend Antenna Cable
- Mini Flat-Head Screwdriver

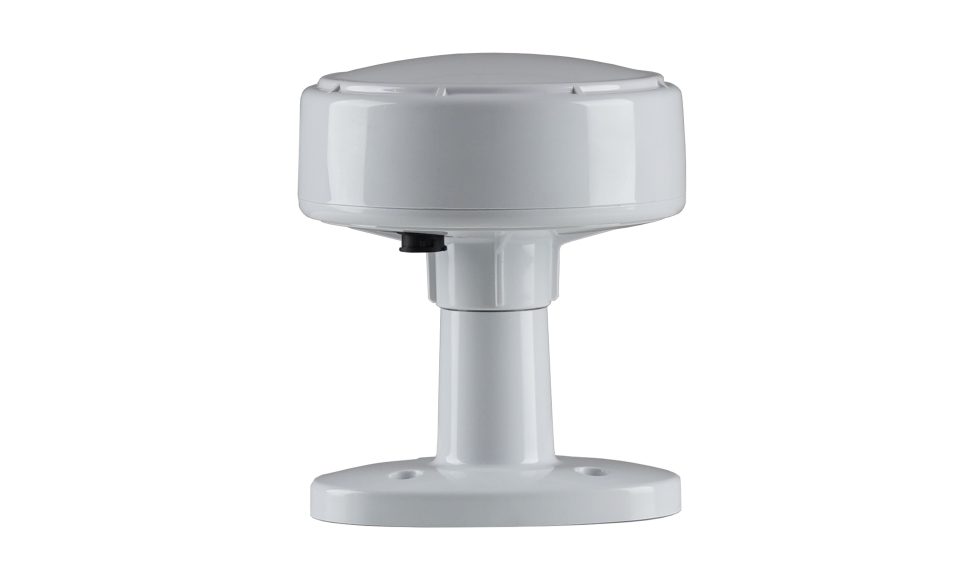

- GPS Mushroom Antenna, IPX7 – With a 10m/8 Core Cable
Additional Extras
The following products are also available for the NTP enterprise time server:
- Gold Customer Support – Replacement Unit is Shipped Within 24 Hours
- Lightning Arrestor – for CAT5 (RJ45) Cable (at Time of Purchase)
- GPS Antenna Swivel Mount
- Additional Antenna Cable - 100 Metre Roll
- Additional Antenna Power Supply – Recommended from 550 Metres Onwards
- Secondary Radio Antenna
- TimeSync NTP/SNTP Client Licenses – User Licenses Available from 5 to 300+
