NTS-4000-S NTP Server
Standalone rackmount NTP server. Available with either a GPS or MSF time source
- True Stratum 1 NTP Time Server
- GPS time reference input
- Configured over the network
- Handles >3,000 NTP requests per minute
- Solid State memory eliminates 'disk failure'
- Industry leading 6 year warranty
- Syslog error reporting
- Free product lifetime support
NTP server NTS-4000-S
A standalone version of the NTS-4000-R rackmount units. The NTS-4000-S is an entry level dedicated NTP server for TCP/IP networks, built using Galleon Systems proprietary operating system, provides a complete solution for synchronising the time across computer networks.
The NTS-4000-S Time Server series combines either an MSF (radio) or GPS receiver with an embedded solid state controller and is configured and managed via a network interface.

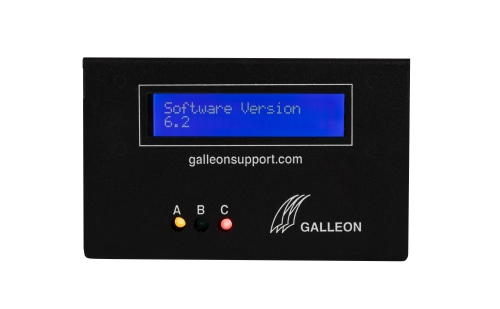

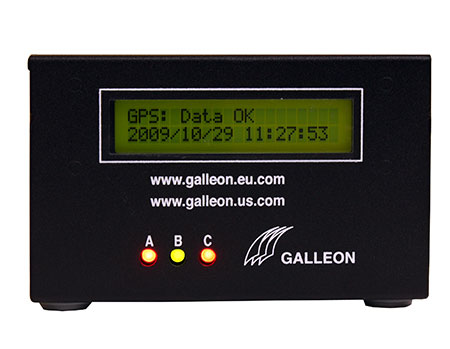

The IP address of the unit can be configured automatically using DHCP to assigning an IP address or a fixed IP address can be used. A display on the front of the unit shows run-time information for both the signal reception and time output.
The NTS-4000 series can handle more than 3,000 NTP requests per minute, making it the choice for providing accurate time information across your network.
Key Benefits
- Ready-to-operate Stratum 1 NTP Time Server
- Support for NTP and SNTP compatible clients
- Handles > 3,000 ntp requests per minute
- Solid state, upgradeable flash memory - no moving parts!
- Front Panel display for easy Time and Signal Status
- Syslog error reporting
- Secure proprietary operating system for enhanced security
- 6 years warranty
Product codes for the GPS and MSF* versions of the NTS-4000-S NTP server
GPS receiver
Product code: NTS-4000-S-GPS
MSF (radio) receiver
Product code: NTS-4000-S-MSF
* DCF and WWVB models also available
Key Features
Product Specification for the NTS-4000-S-GPS Time Server
Receiver:
Active 12 channel GPS Antenna
Timing Accuracy:
Network: ± 12 milliseconds, typical
GPS: <1 microseconds, relative to UTC
NTP Time Requests:
>3,000 requests per minute
Supported Networks:
Can supply time to a single network
Power Consumption:
8 Watts
Dimensions (H × W × D):
85mm × 142mm × 162mm
Display:
LC-display, 2 x 20 characters, with backlight
Operating System:
Proprietary
Protocols (NTP & SNTP):
NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)

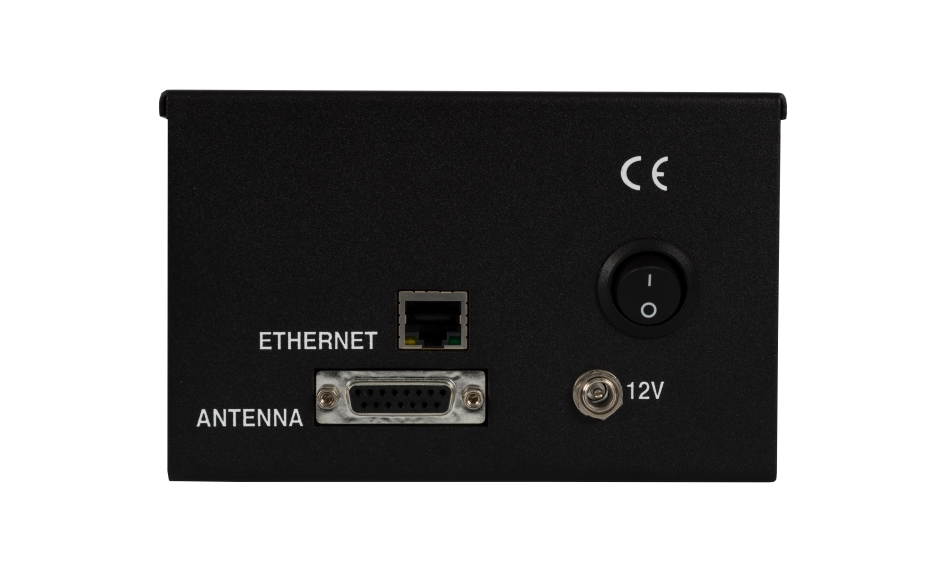

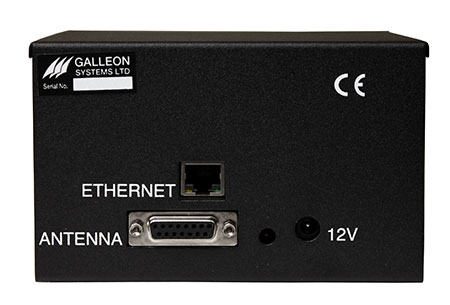

Network Interface:
Single RJ-45 Network Connection 10/100 MBit
Power supply:
85 - 260V, 47 - 63Hz
Operating Temperature:
0-50°C / 32-122°F
Operating Humidity:
Max. 85%

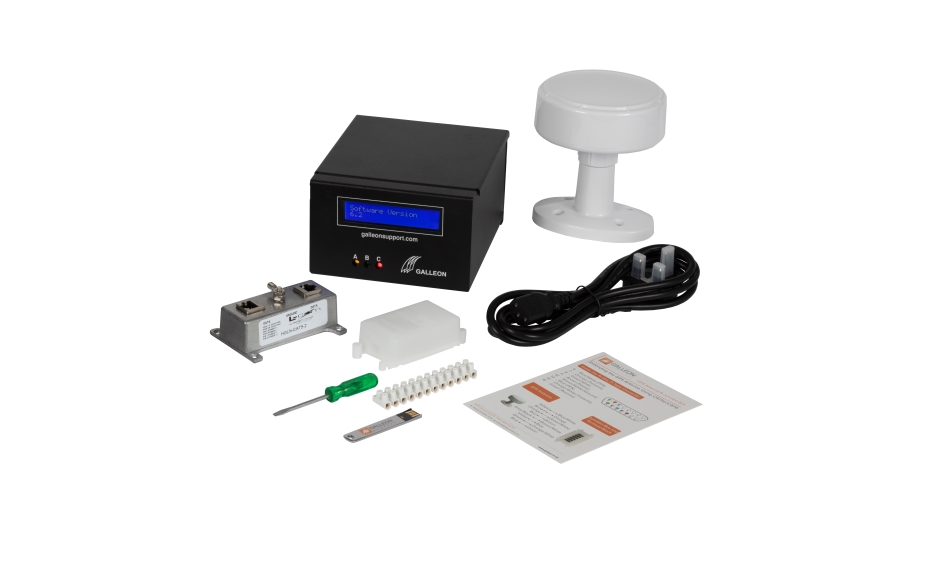

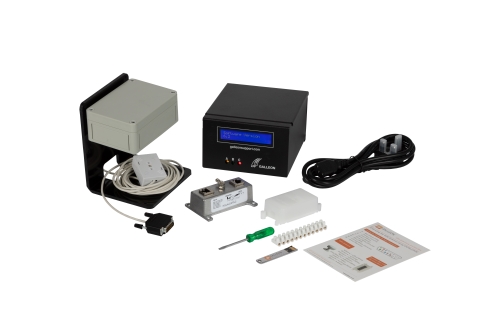

What's in the Box
- NTS-4000-S Unit
- GPS Mushroom Antenna or MSF radio antenna
- Instruction Manual
- Power Lead
- NTP Software CD
- Junction Box (used to extend antenna cable - if necessary)
- IDC Cable Tool (used to insert cable into the junction box- if necessary)
Additional Extras
The following products are also available for use with the NTS-4000-S NTP Time Server:
- Gold and Premium Support Packages
- Digital Wall Clocks
- Antenna Cable (100 to 1,000 metre rolls available)
- Additional Antenna Power Supply (Recommended from 150 metres onwards)
- Lightning Arrestor
- Additional Software Licenses (available from 5 to 300+ clients)
