Request pricing » Product code: TS-700-GPS

TS-700-GPS Network Time Server

Precise clock with GPS antenna

A GPS clock supplies time to the computer via a serial interface and TimeSync software driver The TS-700-GPS will synchronize the time across a Windows PC. The TimeSync software conforms to the Network Time Protocol, runs as a service and configures as a Stratum 1 NTP Timeserver supplying NTP time to any other machine on the network.

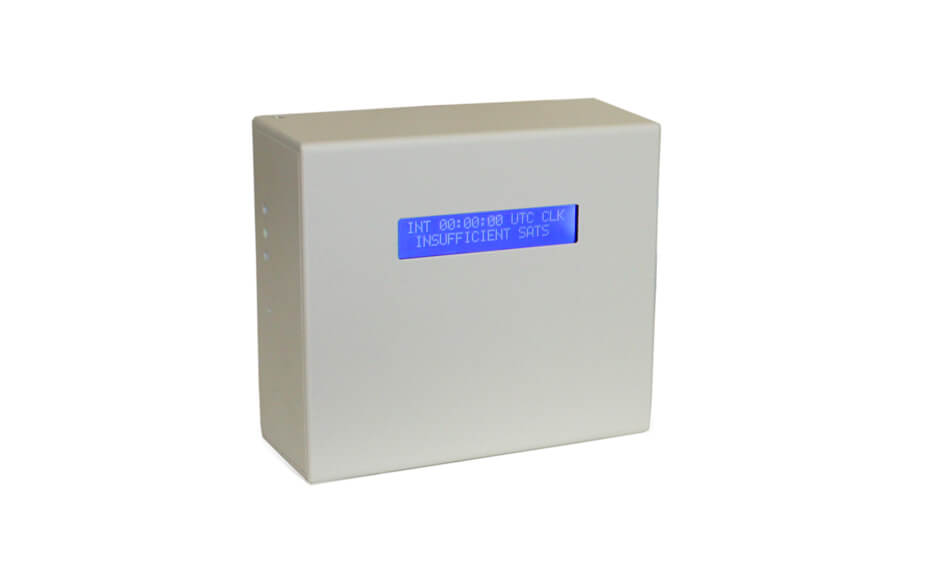

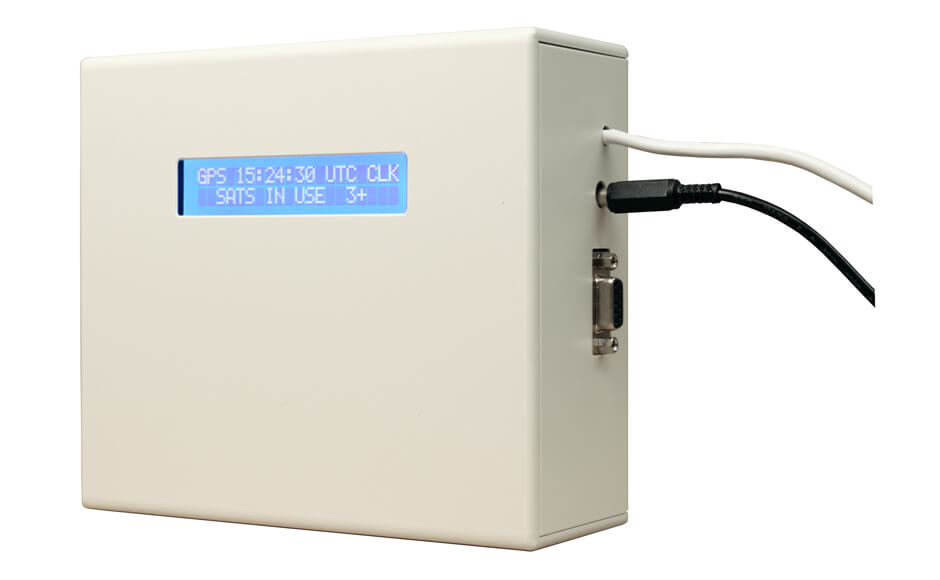

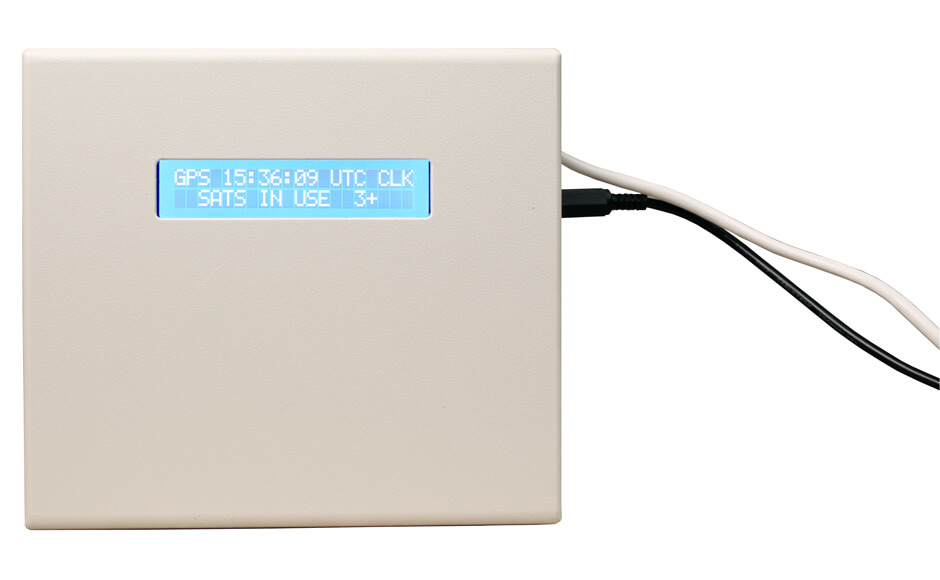

A two line display on the TS-700-GPS unit shows run-time information for the GPS subsystem and UTC time.

The TS-700-GPS provides an elegant solution ensuring that a Windows Server or a Domain Controller has accurate secure time behind the company firewall.

Key Benfits

  • Easy to set up - Installs as a service on a Windows Server
  • Converts existing Windows Server to a Stratum 1 NTP Time Server
  • Provides accurate timing for computers and computer networks
  • Accuracy ±20ms to UTC
  • World-wide operation
  • Three years warranty

Request pricing »

Key Features

TS-700-GPS Network Time Server - Technical Information
Type of receiver Active Antenna GPS 12 channel

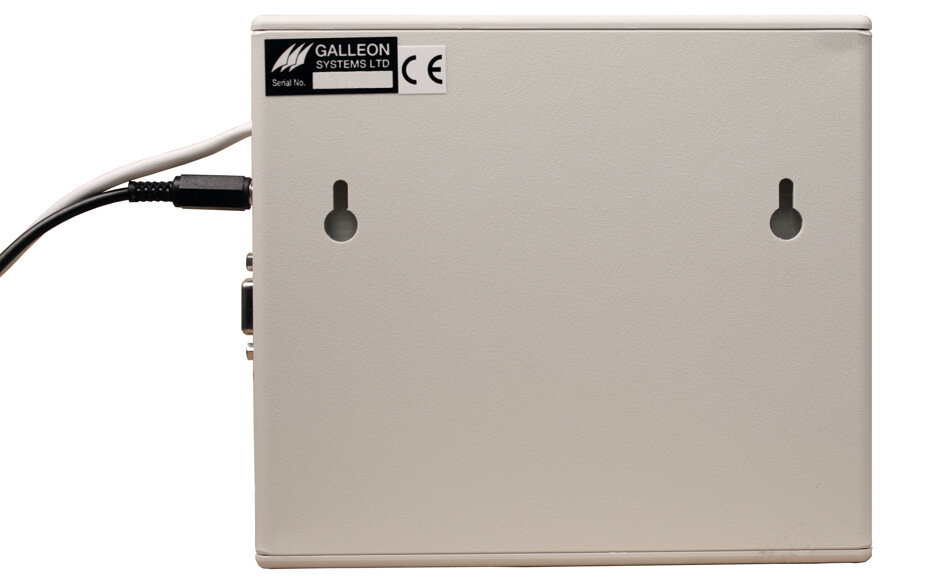

Mounting (GPS Clock) Wall mountable or free standing
Mounting (Antenna) Wall mounting bracket
Display LCD, 2 x 20 characters, with backlight
Network Interface Via a Windows server or workstation
Interface to Server RS232 serial interface (USB optional)
Power supply 85 - 260V, 47 - 63Hz
Working Temperature 0 - 50°C / 32 - 122°F
Working Humidity Max. 85%
Timing Accuracy Network: +/- 20 milliseconds, typical
GPS: 1 microseconds, relative to UTC
Signal (GPS) Accuracy <1 µs, relative to GPS

Request pricing »

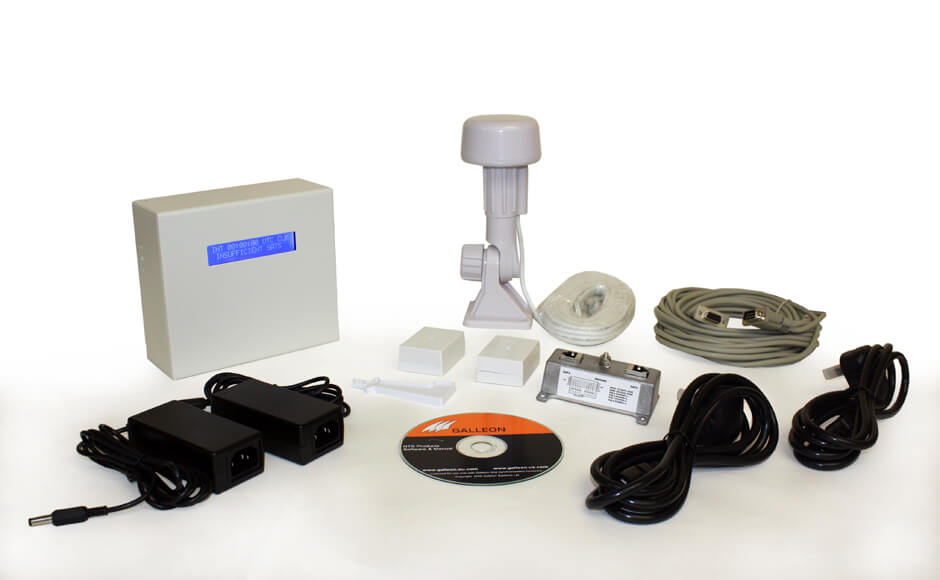

What's in the box - TS-700-GPS

what is supplied with the ts-700-gps network time server
  • TS-700-GPS clock + power supply
  • GPS Antenna (with a 10m/8 Core Cable - not shown) + power supply
  • Instruction Manual
  • NTP Software CD
  • Junction Box (to extend antenna cable - if necessary)
  • IDC Cable Tool (to insert extension cable into the junction box- if necessary)

Additional Extras

The following products are also available for use with the TS-700-GPS :

Request pricing »
