MCM-RS232 Microcontroller Decoder Module

Request Pricing

Product code: MCM-RS232 Microcontroller Decoder Module

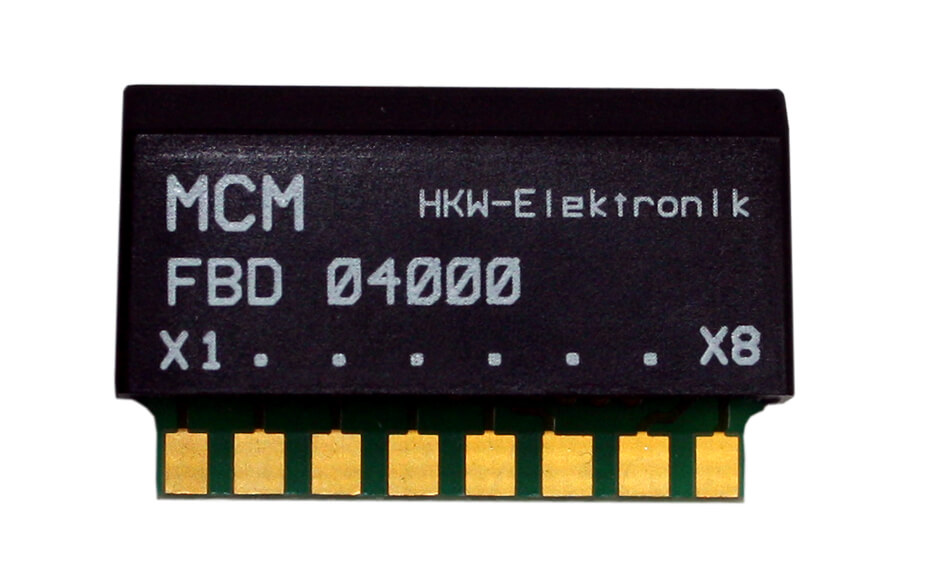

MCM-RS232 Microcontroller Decoder Module

When combined with the EM2 Receiver Module and the Ferrite Antenna, this module provides time information in standard RS232 data format via a serial interface. External buffering to full RS232 levels is required and can be achieved using a proprietary RS232 level shifter IC. The advantage of the module compared to direct host decoding of the receiver output is the presence of exact decoded time information all of the time and no processing overhead.

The module also features a real time clock that recalibrates itself against the Atomic Radio Time Signal when it synchronises with the Atomic Radio Time Signal.

This module is one of three components available from Galleon Systems needed to build your own msf radio time receiver.

MCM-RS232 General Specifications:

MCM-RS232 Microcontroller Decoder Module

Dimensions

22mm x 13mm x 5mm approx.

Nominal operating voltage

+3V DC

Operating voltage range

+2.4V DC to +3.6V DC

Recommended voltage range

3V to 5.25V

Current consumption at+3V active

1mA - Standby: 50-A

Standby

1mA

Output

Power control output (for EM2S), Switching output (for external time control) via suitable circuitry

Inputs

Time code data input (from EM2S), or EM6

Serial data input

from host PC via suitable level converter

Serial data output

to host PC via suitable level converter
