Product code: EM2S Radio Receiver Module

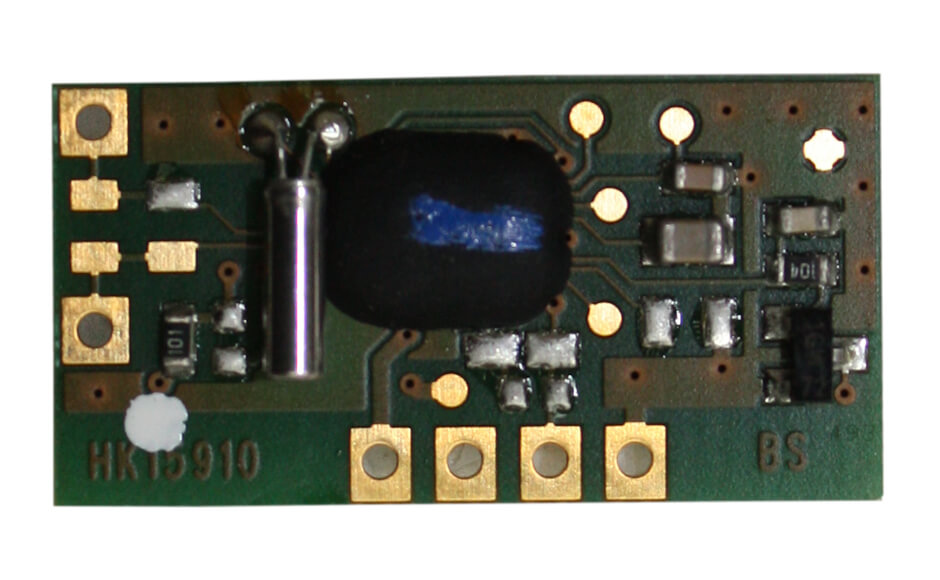

EM2S Radio Receiver Module

This radio receiver module has a low-power standby mode with maximum 1µA current consumption. In active mode the current consumption is less than 1mA, typically 500µA. The data output is connected internally with an active low open collector NPN transistor.

This module is one of three components available from Galleon Systems needed to build your own msf radio time receiver.

EM2S Receiver Module General Specifications:

EM2S Radio Receiver Module

Dimensions

25mm x 13mm x 12mm approx.

Nominal operating voltage

+3V DC to 12V DC

Operating voltage range

2.2V to 15V DC

Recommended voltage range

3V to 5.25V

Current consumption at+3V active

1mA

Standby

1mA

Output

Open collector NPN transistor, active low

Maximum sink current

15mA

Maximum collector voltage

+5.25V
