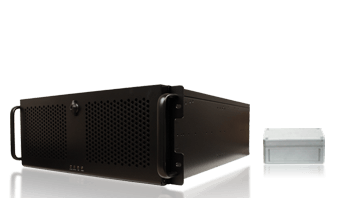

NTS-8000-MSF NTP Time Server

Precise and reliable Windows Server Stratum 1 MSF time source NTP Time Server for large networks.

Request Pricing

Product code: NTS-8000-MSF

  • True Stratum 1 NTP Time Server
  • MSF time reference input
  • Easily configured via a proprietary windows configuration utility pre-installed on the server
  • Handles >3,000 NTP requests per minute
  • Syslog error reporting
  • Industry leading 6 year warranty
  • Free product lifetime support
6 year warranty, lifetime support, CE and RoHS icons

NTP Network Time Server with MSF time receiver

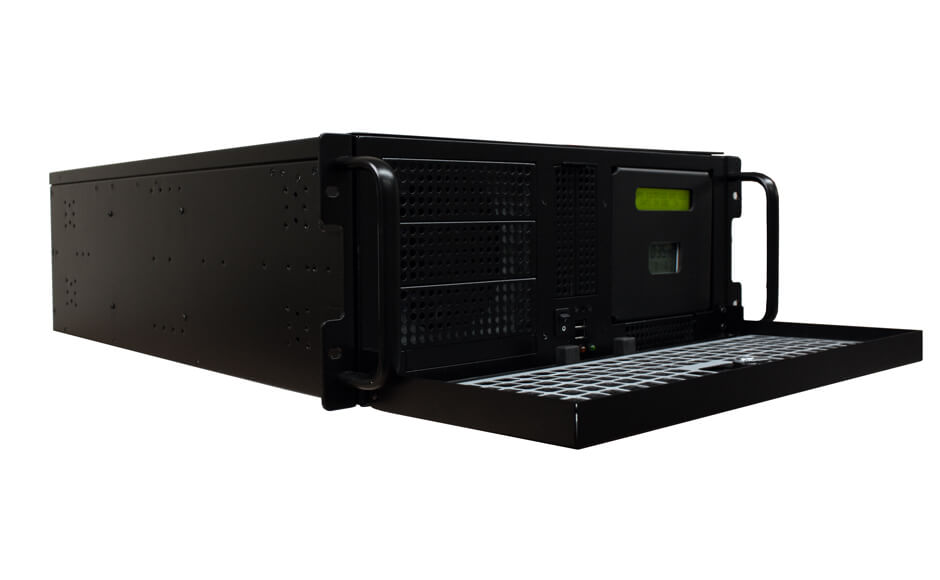

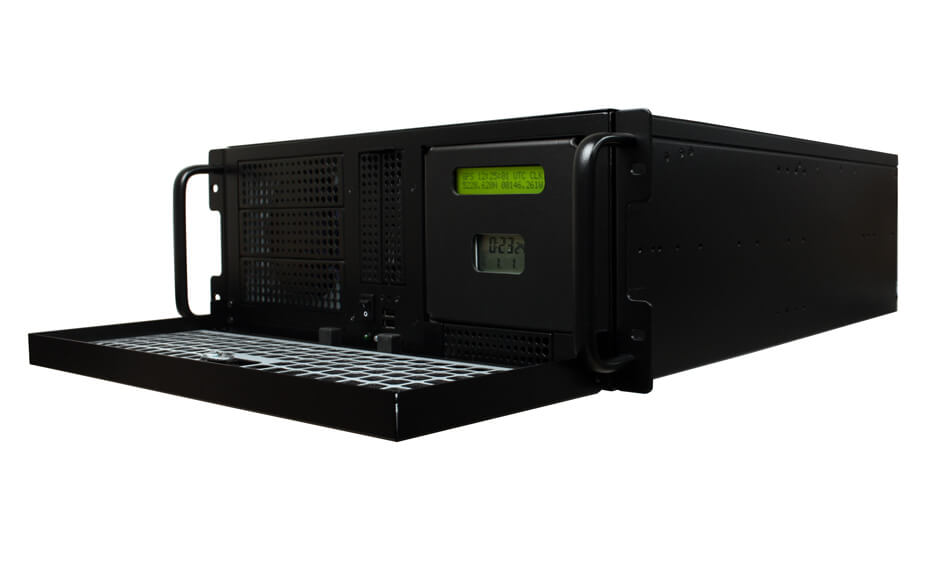

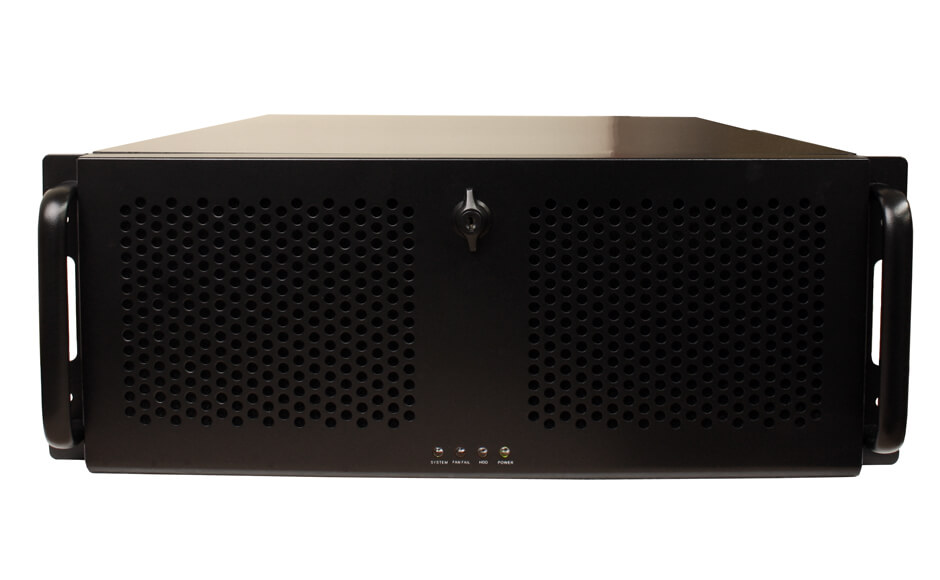

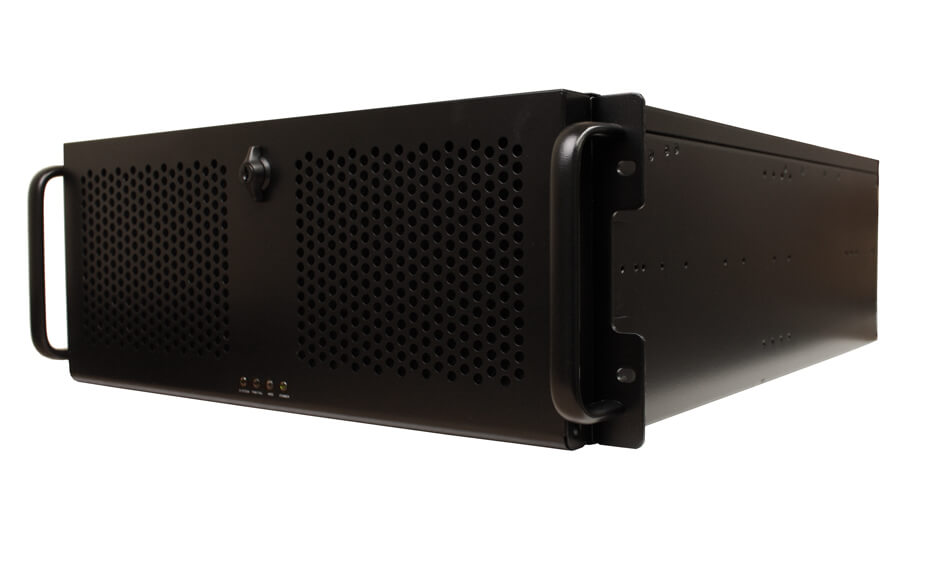

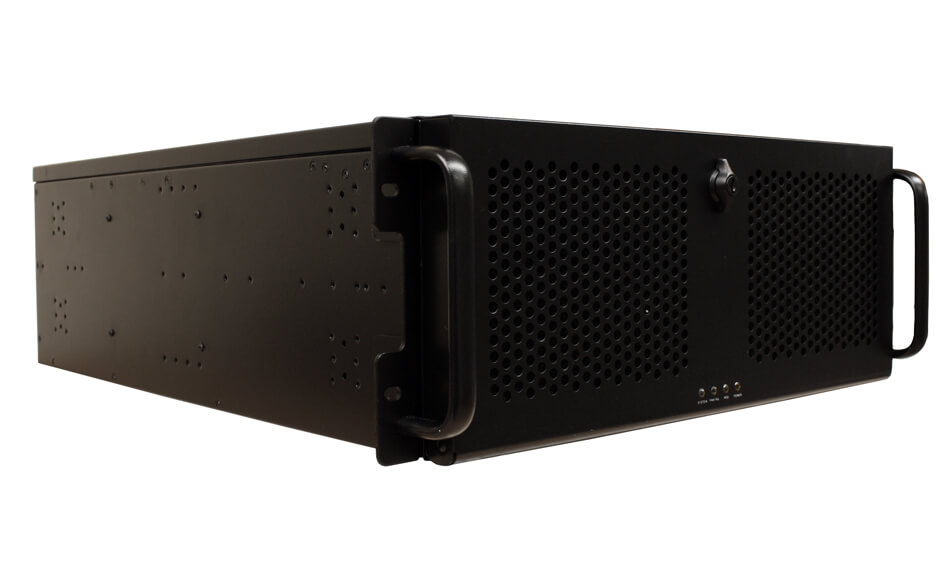

A complete solution for synchronising large networks. The NTS-8000-MSF Network Time Server combines a MSF based atomic radio clock receiver with a Windows server operating system based computer and offers straight forward configuration and management by a standard Windows or remote interface.

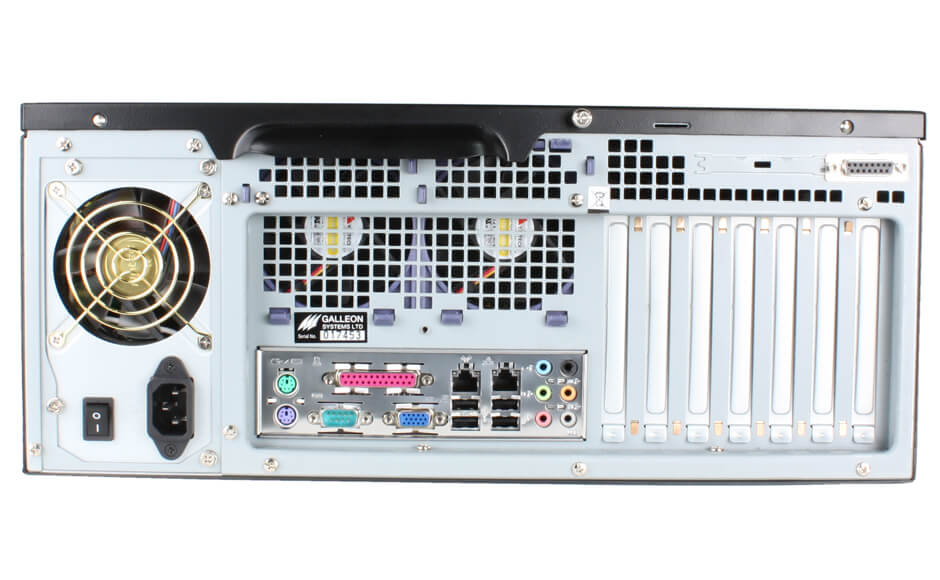

The unit connects directly to your network via a CAT5 Ethernet connection and fits in a standard 19" rack. This radio time server incorporates a radio controlled computer clock and remote weather proof (IP65) antenna. Ideally the antenna should be mounted externally on a wall, but can also be mounted internally near a window. The antenna can be positioned up to 200m (600 ft) away as a standard installation, or up to 1,000m (3,000ft) using an optional antenna extension kit.

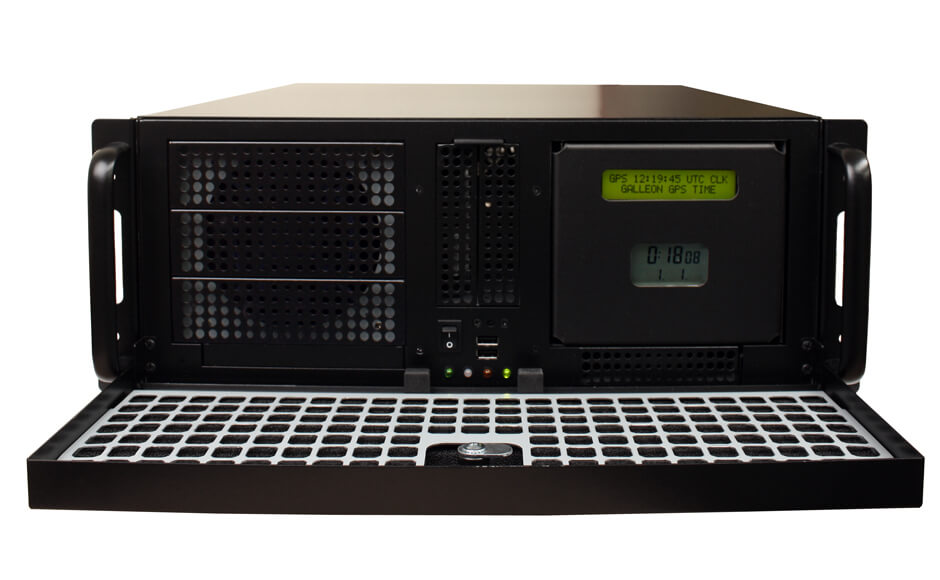

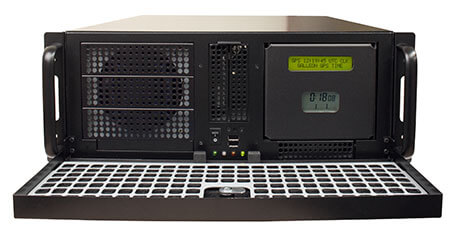

The NTS-8000-MSF has a backlit LCD display to show both time information and radio signal reception to aid installation. The Software drivers conform to the Network Time Protocol Version 4 (NTP V4) and are available for uni-cast, broadcast or multi-cast NTP time synchronization. Configuration and management of the unit is straight forward via a network interface. The IP address of the unit can be configured by using DHCP to assigning an IP address automatically or a fixed IP address can be used.

The NTS-8000-MSF can be built with multiple (currently up to six) Ethernet ports enabling it to serve time to multiple independent networks and can handle more than 3,000 NTP requests per minute per network, making it the first choice for providing accurate time information to very large networks with thousands of clients!

Key Benefits

  • Ready-to-operate Secure Stratum 1 NTP Time Server
  • Includes MSF radio time signal receiver
  • Support for NTP v2, NTP v3, NTP v4 and SNTP compatible clients
  • Easily configured via a proprietary windows configuration utility pre-installed on the server
  • Multiple RJ-45 Ethernet interfaces 10/100 MBit
  • Can handle more than 3,000 NTP requests per minute per port, ideal for large networks
  • MD5 authentication for advanced security
  • Able to Peer with other NTP time servers for enhanced synchronization security
  • Front Panel display for Time and Satellite and Radio time Status
  • SNTP and NTP protocol support
  • Syslog error reporting
  • 6 years warranty

Key Features

Product Specification for the NTS-8000-MSF Time Server

Receiver:

MSF radio receiver

Timing Accuracy:

Network: ± 12 milliseconds, typical
MSF: <1 microseconds, relative to UTC

NTP Time Requests:

>3,000 requests per minute

Supported Networks:

Can supply time to up to 6 separate networks

Housing:

Standard 19" rackmount (2U)

Display:

LC-display, 2 x 20 characters, with backlight

Operating System:

Windows Server 2008 R2

Protocols (NTP & SNTP):

NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)

Network Interface:

Multiple (up to 6) RJ-45 Network Connection 10/100 MBit

Power supply:

85 - 260V, 47 - 63Hz

Operating Temperature:

0-50°C / 32-122°F

Operating Humidity:

Max. 85%

What's in the Box

What's included with the NTS 8000 MSF NTP server
  • NTS-8000-MSF Unit
  • MSF Antenna (with a 5m/4 Core Cable)
  • Instruction Manual
  • Power Lead
  • NTP Software CD
  • Junction Box (used to extend antenna cable - if necessary)
  • IDC Cable Tool (used to insert cable into the junction box- if necessary)
