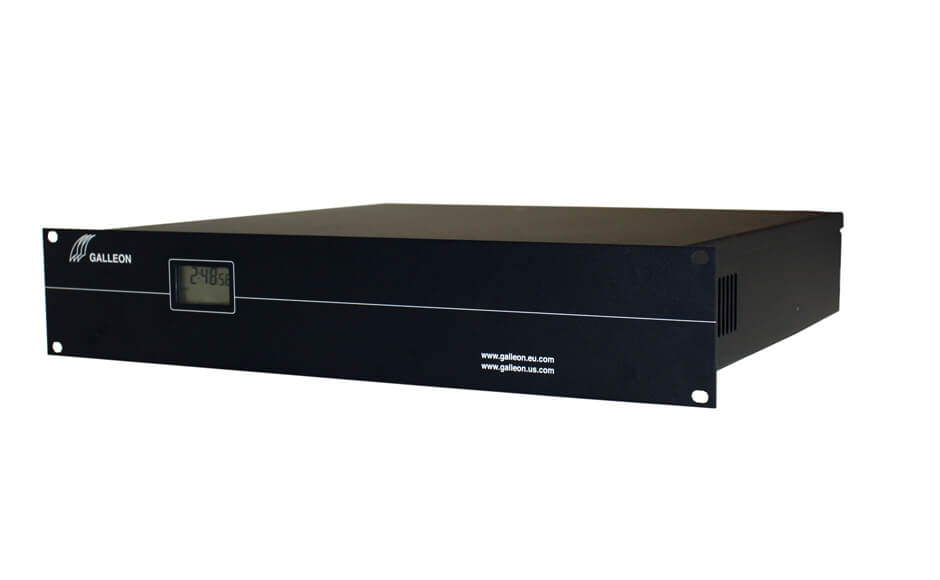

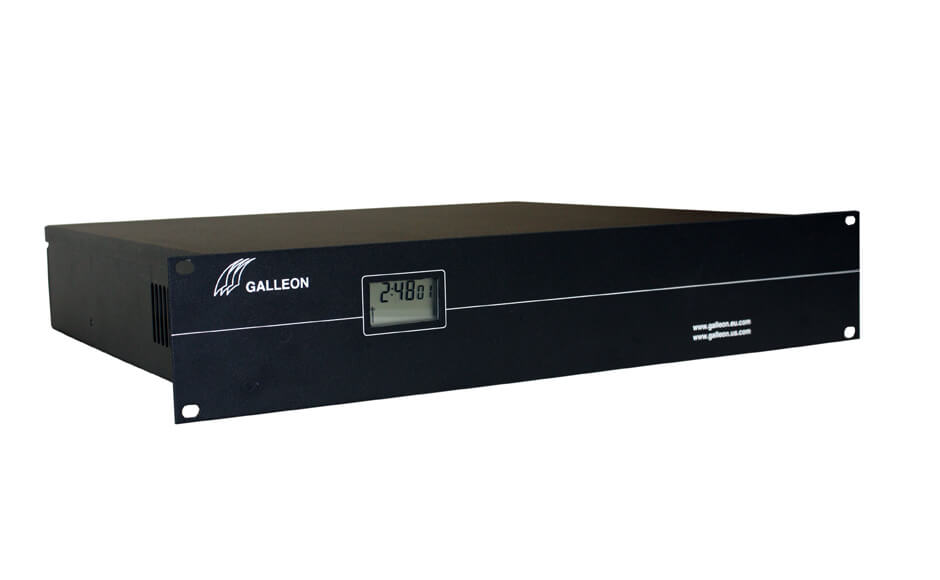

TS-900-MSF Network Time Server
Rack-mount clock, MSF antenna and NTP server software to convert an existing Windows server to a reliable stratum 1 time server.
- Installs as a service on a Windows Server adding Stratum 1 NTP Time Server functionality
- Supports NTP and SNTP compatible clients

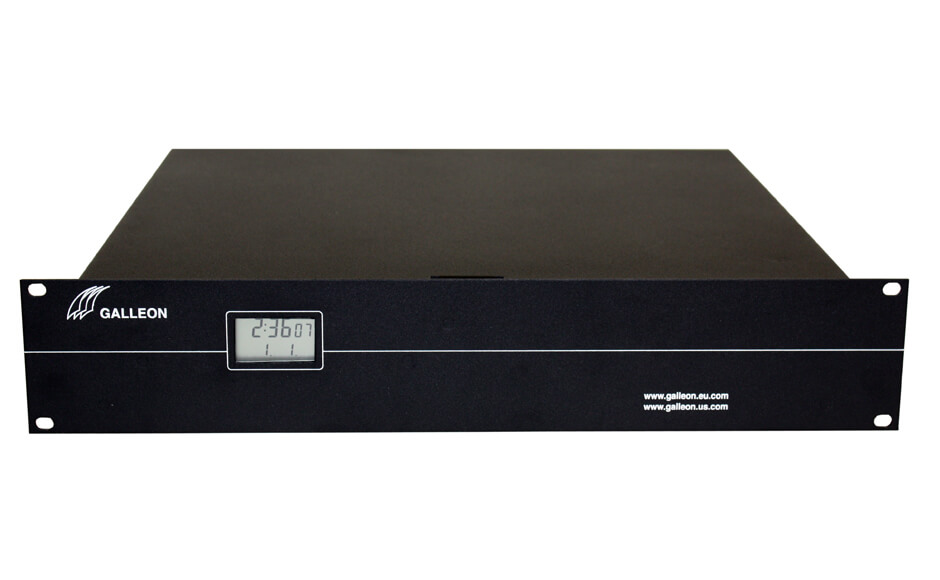

- Front Panel display to easily assess Time and Satellite Status
- MSF time reference input + 5m cable
- Extension box and wiring tool included - GPS antenna cable length can be extended up to 1,000m (3,000ft) if required
- Syslog error reporting
- Email warning if MSF synchronisation is lost
Rack Mount Network Time Server
The TS-900-MSF Network Time Server solution consists of an MSF clock, MSF antenna and NTP software (TimeSync). The MSF clock is attached to windows PC and the supplied TimeSync software once installed configures the machine as a Stratum 1 NTP time server. A two line display on the TS-900 unit shows run-time information for the MSF subsystem and UTC time.
Sitting safely behind your company firewall the TS-900 provides an elegant solution allowing a Windows Server or a Domain Controller to supply accurate, secure UTC time to any other machine or digital clock on your network.
Key Benefits
- Installs as a service on a Windows Server adding Stratum 1 NTP Time Server functionality
- Supports NTP and SNTP compatible clients
- Front Panel display to easily assess Time and Satellite Status
- MSF time reference input + 5m cable
- Extension box and wiring tool included - MSF antenna cable length can be extended up to 1,000m (3,000ft) if required
- Syslog error reporting
- Email warning if MSF synchronisation is lost
- 3 years warranty
- Lifetime Technical Support by phone or email
Key Features
TS-900-MSF Network Time Server - Technical Information
TS-900 Dimensions (mm)
(2U): 78 (H) x 425 (W)x 309 (D)
TS-900 Construction
Powder Coated Steel
Antenna
Extenal Radio receiver for the MSF Signal + mounting bracket
Power Supply
85-260V, 47-63Hz
Protocols
SNTP via Time-Sync

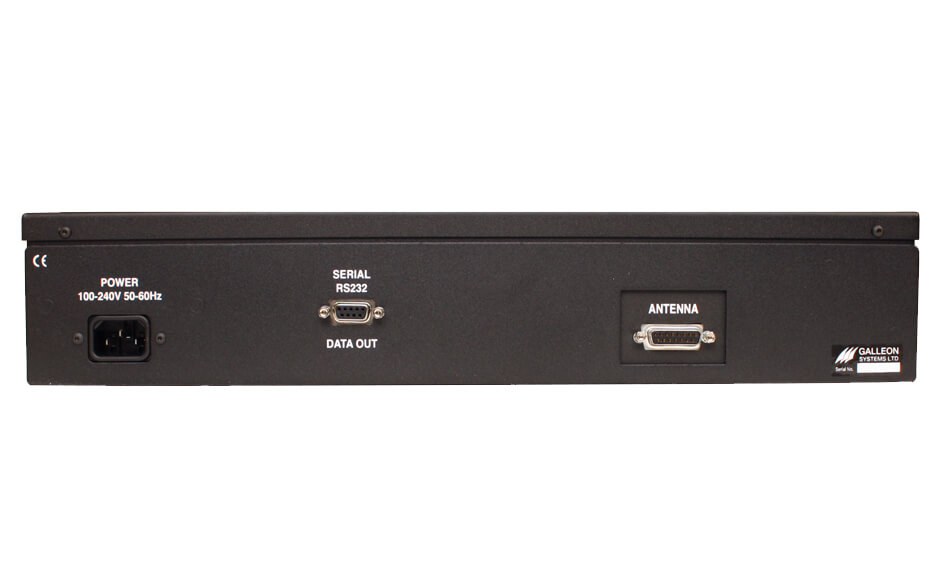

Connections
RS232 Serial Interface
Display
2 line LCD
Requests Per Minute
Dependent on Hardware
Operating Temperatures
0-50°C (32-122°F)
Humidity
Max. 85%
Mount
Rack
Function
Win -> Stratum 1
Network Accuracy
Network:+/- 20 Milliseconds, Typical
MSF: <2 Microseconds, Relative to UTC
Security
System Error Logging

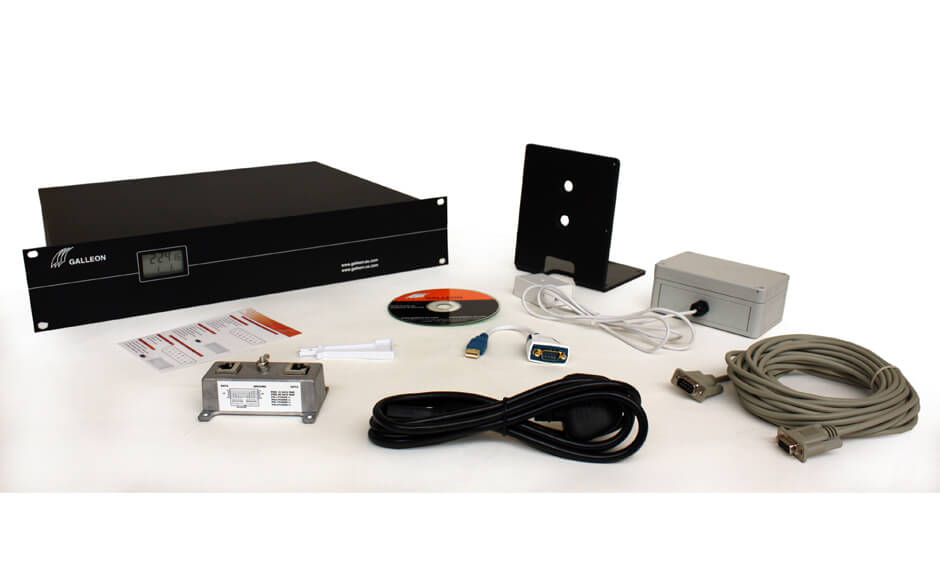

What's in the Box
- TS-900-MSF unit + Power Lead
- MSF Antenna + power supply
- Antenna wall mounting bracket
- Instruction Manual
- NTP Software CD
- Junction Box (to extend antenna cable - if necessary)
- IDC Cable Tool (to insert extension cable into the junction box- if necessary)
Additional Extras
The following products are also available for use with the TS-900-MSF:
- Gold and Premium Support Packages
- RS232 to USB convertor
- Digital Wall Clocks
- Antenna Cable (100 to 1,000 metre rolls available)
- Additional Power Supply (Recommended from 150 metres onwards)
- Additional Software Licenses (available from 5 to 300+ clients)
