TS-900-GPS Network Time Server

Rack-mount GPS clock, antenna and NTP server software to convert an existing Windows (NT, 2000, 2003, XP) PC to a reliable stratum 1 time server

Request Pricing

Product code: TS-900-GPS

  • Installs as a service on a Windows Server adding Stratum 1 NTP Time Server functionality
  • Supports NTP and SNTP compatible clients
  • Front Panel display to easily assess Time and Satellite Status
  • GPS active antenna + 10m cable
  • Extension box and wiring tool included - GPS antenna cable length can be extended up to 1,000m (3,000ft) if required
  • Syslog error reporting
  • Email warning if GPS synchronisation is lost
3 year warranty, lifetime support, CE and RoHS icons

TS-900-GPS Network Time Server

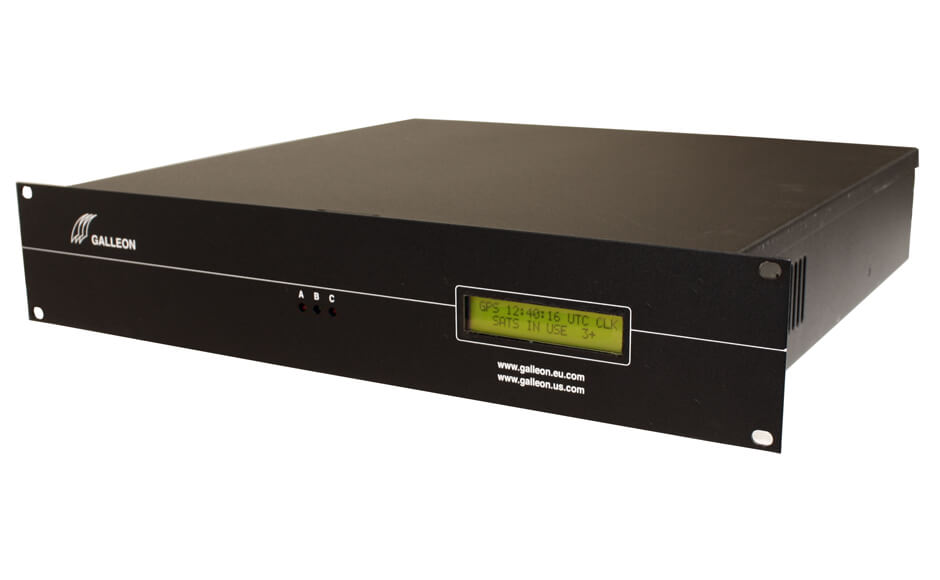

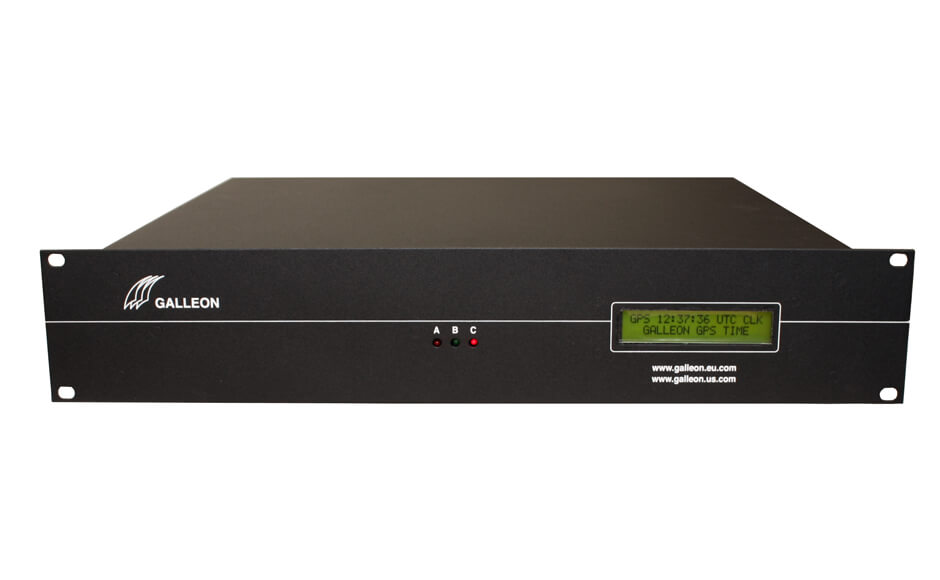

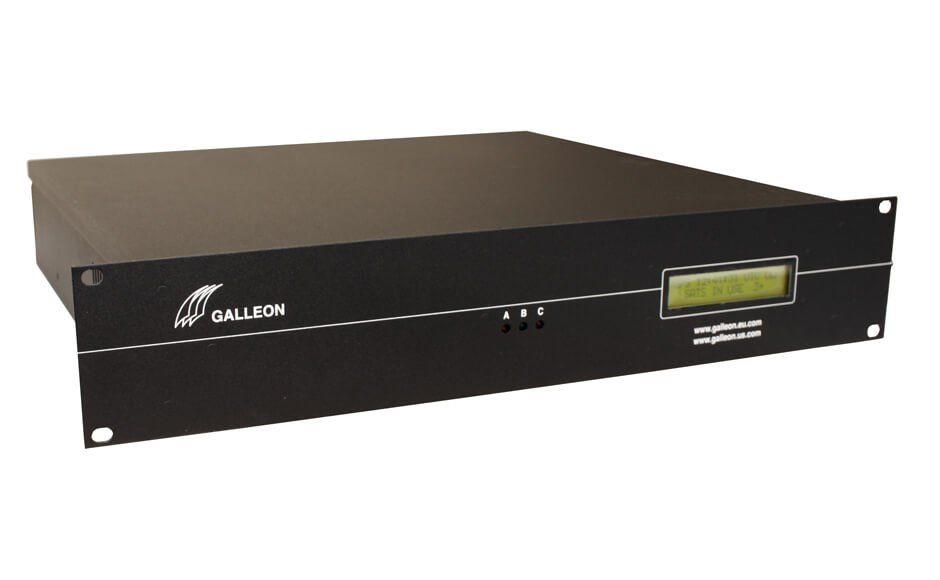

The TS-900-GPS Network Time Server solution consists of a GPS clock, GPS antenna and TimeSync software. The GPS clock is attached to a windows PC and the supplied TimeSync software once installed configures the machine as a Stratum 1 NTP time server. A two line display on the TS-900 unit shows run-time information for the GPS subsystem and UTC time.

Sitting safely behind your company firewall the TS-900 provides an elegant network timing solution allowing a Windows Server or a Domain Controller to supply accurate, secure UTC time to any other machine or digital clock on your network.

Key Benefits

  • Installs as a service on a Windows Server adding Stratum 1 NTP Time Server functionality
  • Supports NTP and SNTP compatible clients
  • Front Panel display to easily assess Time and Satellite Status
  • GPS active antenna + 10m cable
  • Extension box and wiring tool included - GPS antenna cable length can be extended up to 1,000m (3,000ft) if required
  • Syslog error reporting
  • Email warning if GPS synchronisation is lost
  • 3 years warranty
  • Lifetime Technical Support by phone or email

Key Features

TS-900-GPS Network Time Server - Technical Information

Type of receiver:

Active GPS Antenna 12 channel

Mounting (GPS Clock):

19" (2U) rackmount

Mounting (Antenna):

Wall mounting bracket

Display:

LCD, 2 x 20 characters, with backlight

Network Interface:

Via a Windows server or workstation

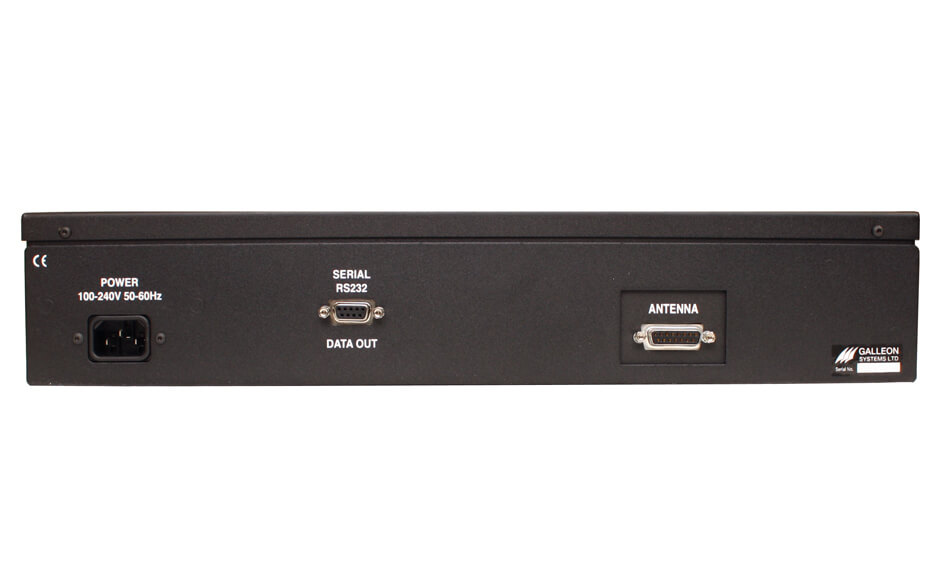

Interface to Server:

RS232 serial interface. (USB optional)

Power supply:

85 - 260V, 47 - 63Hz

Working Temperature:

0 - 50°C / 32 - 122°F

Humidity:

Max. 85%

Timing Accuracy:

Network: +/- 20 milliseconds, typicalGPS: 1 microseconds, relative to UTC

Signal (GPS) Accuracy:

<1 µs, relative to GPS

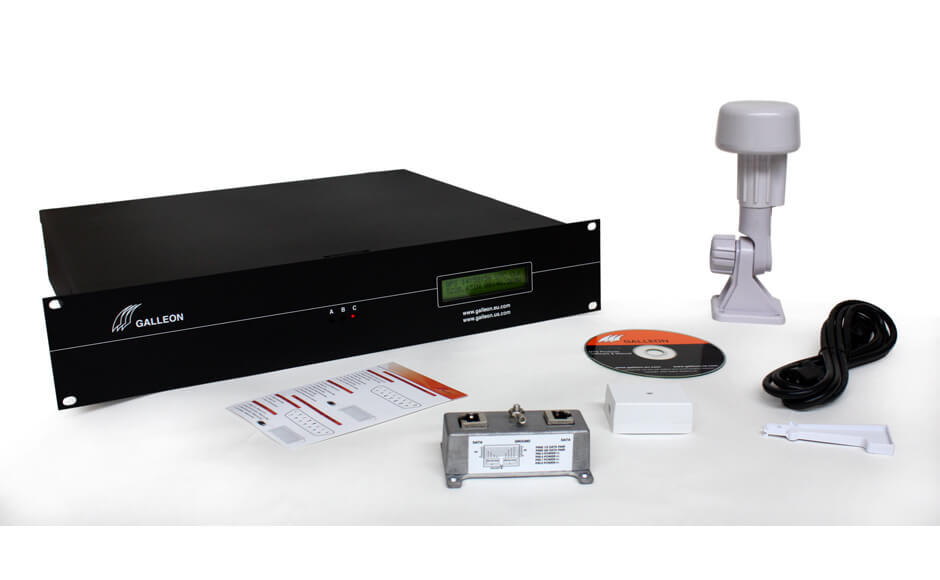

What's in the Box

What is supplied with the TS-900-GPS network time server
  • TS-900 unit + Power Lead
  • GPS Antenna (with a 10m/8 Core Cable - not shown) + power supply
  • Instruction Manual
  • NTP Software CD
  • Junction Box (to extend antenna cable - if necessary)
  • IDC Cable Tool (to insert extension cable into the junction box- if necessary)

Additional Extras

The following products are also available for use with the TS-900-GPS:
