TS-300-MSF Network Time Server

MSF (radio) antenna and software to convert an existing Windows (NT, 2000, 2003, XP) PC to a Stratum 1 time server.

Request Pricing

Product code: TS-300-MSF

  • Stand-alone unit with integrated MSF antenna
  • Accuracy ±20ms
  • Battery powered
  • Three year warranty
3 year warranty, lifetime support, CE and RoHS icons

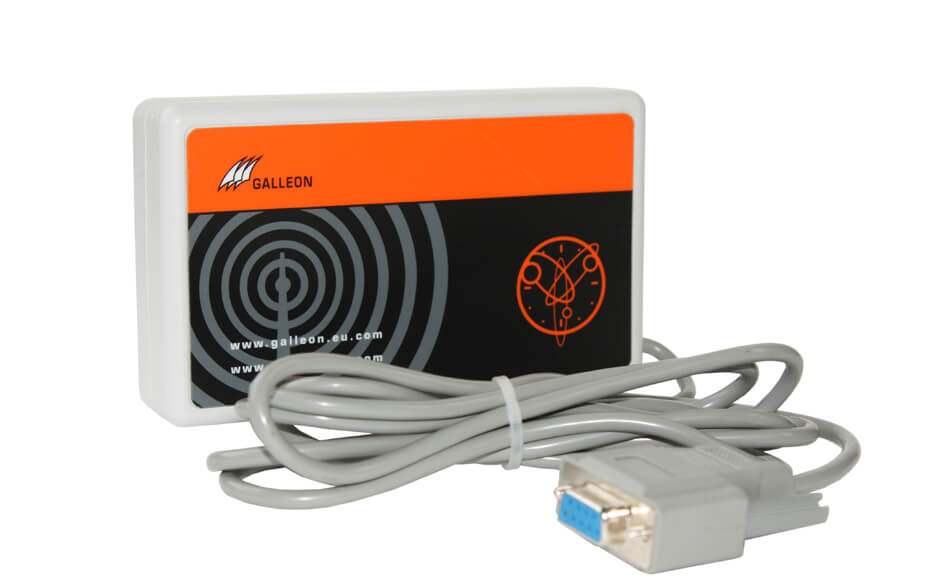

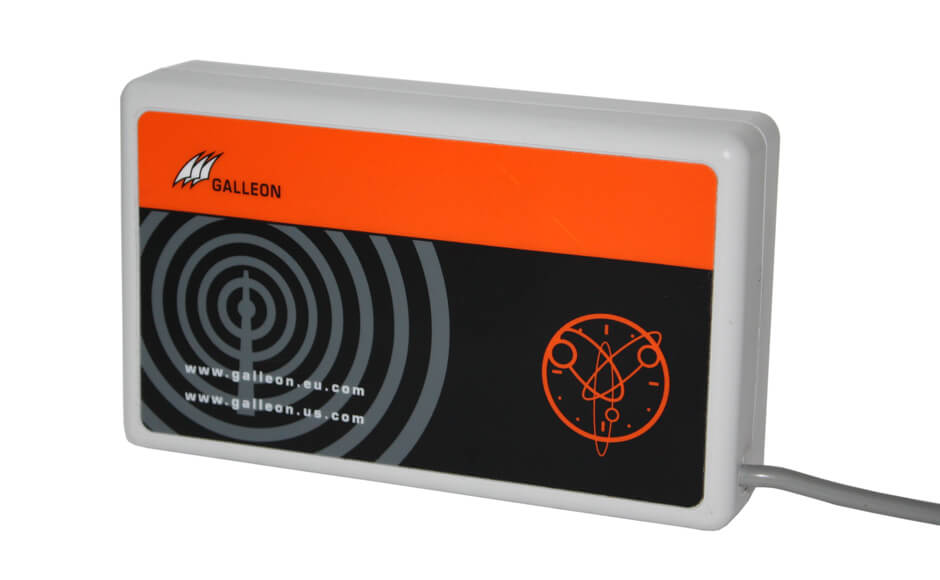

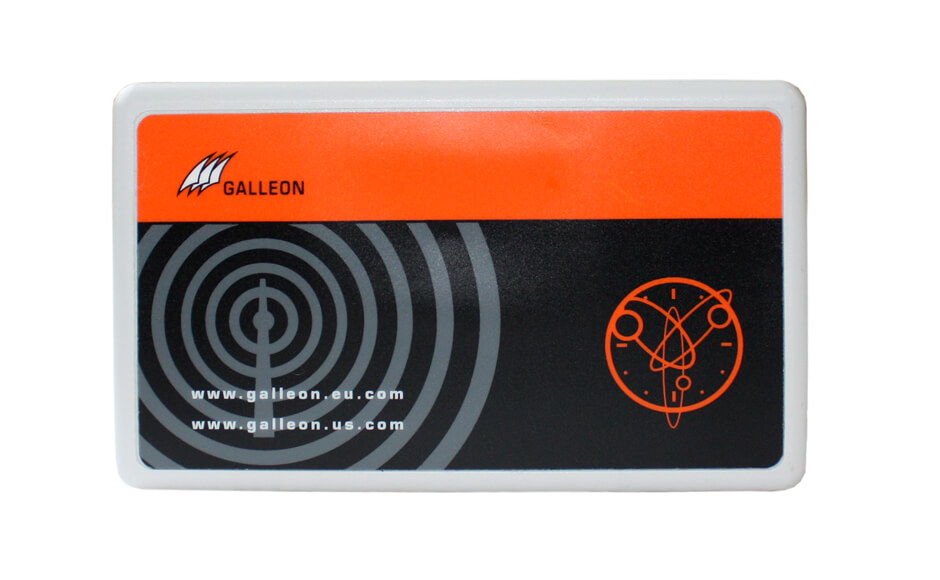

TS-300-MSF time server

Supplying time to a network of PC’s, the MSF clock is a standalone all-in-one antenna that receives a reliable signal. Providing accurate time behind a windows firewall, server or domain, the TS-300-MSF can be up and running in a few minutes. Supplied with a software driver for NTP Time-Synch and additional technical support by phone and email, Galleon provides a comprehensive and easy solution for secure network time.

Windows NT, 2000, 2003, XP.

Key Benefits

  • Stand-alone unit with integrated MSF antenna
  • Accuracy ±20ms
  • Battery powered
  • Three year warranty

Key Features

TS-300-MSF Network Time Server - Technical Information

Dimensions (mm)

73 (H) × 124 (W) × 29 (D)

Antenna Signal

MSF (radio)

Protocols

SNTP via Time-Sync Software

Connections

RS232 Serial Interface

Mounting

Can be mounted internally (preferably near a window)

Operating System

Requires MS Windows (version dependent on existing system)

Humidity

Max. 85%

Operating Temperatures

0-50°C (32-122°F)

Network Accuracy

± 20 ms, Typical

Signal (MSF) Accuracy

<2 µs, relative to UTC

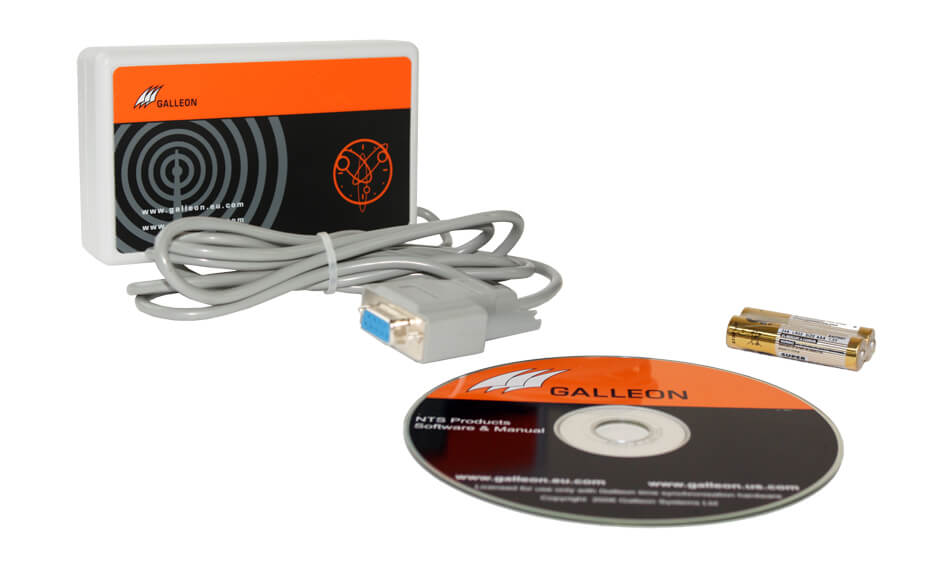

What's in the Box

what is supplied with TS-300-MSF network time server
  • TS-300-MSF antenna
  • Instruction Manual
  • Time Synch SNTP Software CD
  • Batteries

Additional Extras

The following products are also available for use with the TS-300-MSF:
