Request pricing » Product code: AC-700-GPS

AC-700-GPS Time Receiver

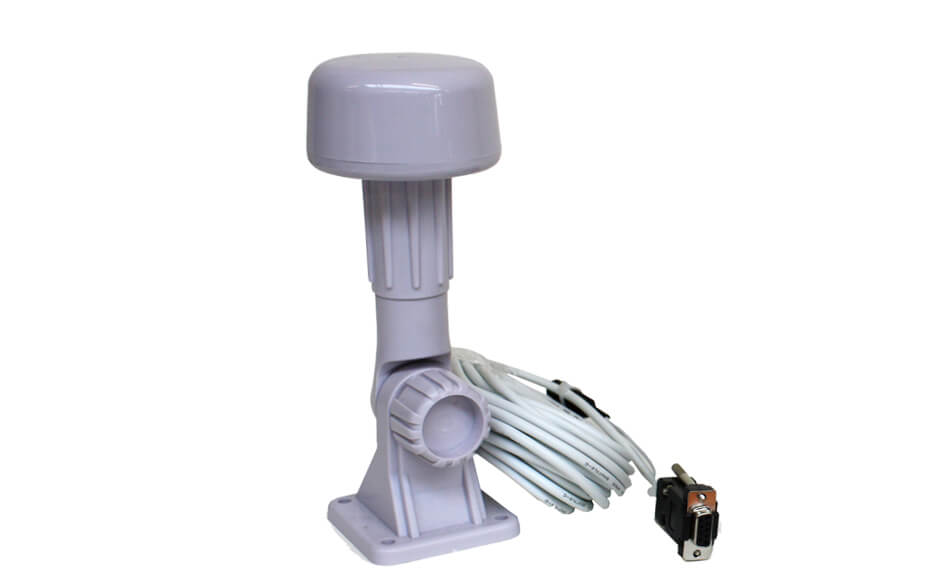

GPS computer clock remote antenna (IP65)

The AC-700-GPS is mains powered GPS antenna that can track up to 12 satellites and has pulse per second (PPS) for increased accuracy. The antenna is supplied with 10m of cable.

The AC-700-GPS connects to the computer by a serial interface and the supplied software driver synchronises the time on a single Windows Server or Workstation and can also synchronize PC's, workstations and other NT servers across the network.

Key Benefits

  • Accurately synchronises Windows 95, 98, NT, 2000 and UNIX solaris and Linux computer networks
  • Requires a single serial RS232 port
  • 1 year warranty

Request pricing »

Key Features

AC-700-GPS Antenna Technical Details
General L1 1575.42MHz, C/A code, 12-channel all in view tracking
Sensitivity -143dBm minimum
Update Rate 1Hz
Accuracy Position: <15m (95%) without S/A
Velocity: 0.1m/sec without S/A
Time: ±100ns synchronised to GPS time
WAAS Accuracy Position: 3m CEP
Velocity 0.05m/sec
Aquisition Cold start: 45 sec average
Warm Start: 38 sec average
Hot start: 8 sec average
Re-aquisition 0.1 sec
Data WGS-84
DGPS WAAS/EGNOS
Dynamics Altitude: 18000m Max.
Velocity: 500m/s
Acceleeration 4gMax
antenna Built in patch antenna
Operating temperature -30°C - 80°C
Operating humidity 5% - 95%
Input Current 150mA Max.
Protocols NMEA-0183 v2.20 at 4800 baud rate, 8-None-1
Interface RS-232 or RS-422
Power Input 9V - 34V DC
Cable Length 10m (can be extended)

Request pricing »

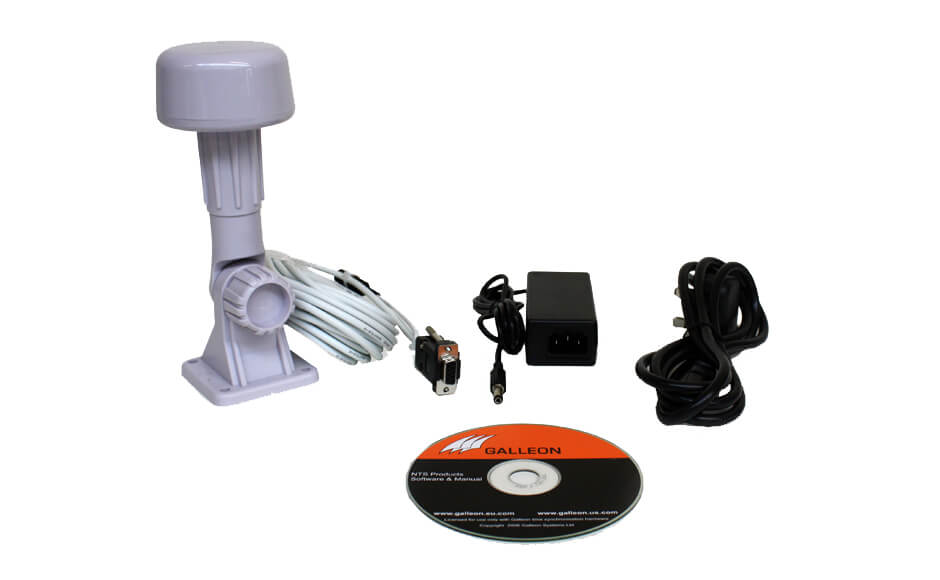

What's in the box

an image of what is supplied with the AC-700-GPS time receiver
  • AC-700-GPS Receiver + power supply
  • Instruction Manual
  • NTP Software CD

Additional Extras

The following products are also available for use with the AC-700-GPS :

Request pricing »
