AC-500-GPS Time Receiver
Workstation GPS Satellite Clock, tracks up to 8 satellites to synchronise a single computer to UTC time in any location worldwide.
- Accurately synchronises Windows 95, 98, NT, 2000 and UNIX solaris and Linux computer networks
- Requires a single serial RS232 port
- 1 year warranty

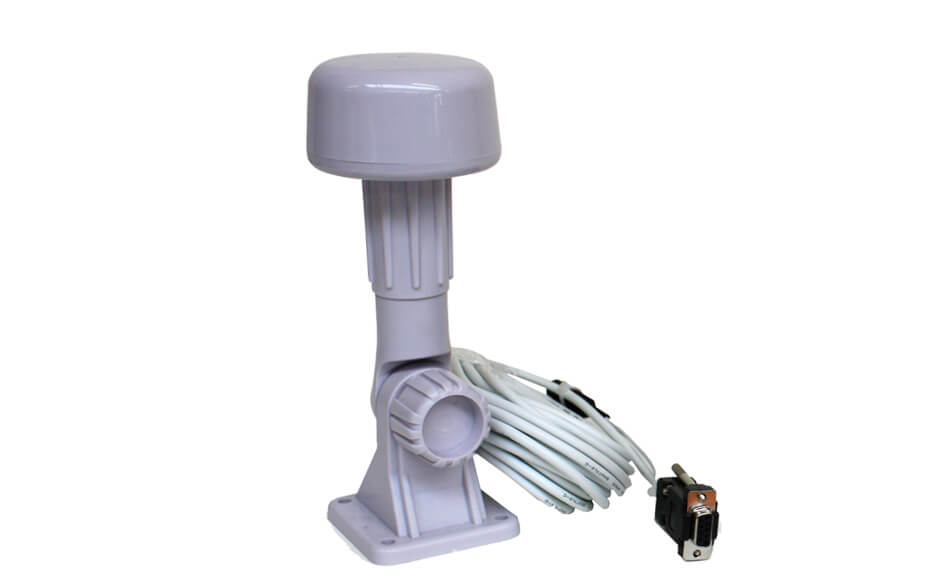

AC-500-GPS Time Receiver
Entry Level GPS computer clock remote antenna (IP65)
The AC-500-GPS is mains powered GPS antenna that can track up to 8 satellites. The antenna can be positioned up to 15m away from the computer (10m supplied) and connects to the computer by a serial interface. The supplied software driver synchronises the time on a single Windows Server or Workstation and can also synchronize PC's, workstations and other NT servers across the network.
Key Benefits
- Accurately synchronises Windows 95, 98, NT, 2000 and UNIX solaris and Linux computer networks
- Requires a single serial RS232 port
- 1 year warranty
Key Features
AC-500-GPS Antenna Technical Details
General
L1 1575.42MHz, C/A code, 12-channel all in view tracking
Sensitivity
-143dBm minimum
Update Rate
1Hz
Accuracy
Position: <15m (95%) without S/A
Velocity: 0.1m/sec without S/A
Time: ±100ns synchronised to GPS time
WAAS Accuracy
Position: 3m CEP
Velocity 0.05m/sec
Aquisition
Cold start: 45 sec average
Warm Start: 38 sec average
Hot start: 8 sec average
Re-aquisition
0.1 sec
Data
WGS-84
DGPS
WAAS/EGNOS
Dynamics
Altitude: 18000m Max.
Velocity: 500m/s
Acceleeration 4gMax
Antenna
Built in patch antenna
Operating temperature
-30°C - 80°C
Operating humidity
5% - 95%
Input Current
150mA Max.
Protocols
NMEA-0183 v2.20 at 4800 baud rate, 8-None-1
Interface
RS-232 or RS-422
Power Input
9V - 34V DC
Cable Length
10m (can be extended)

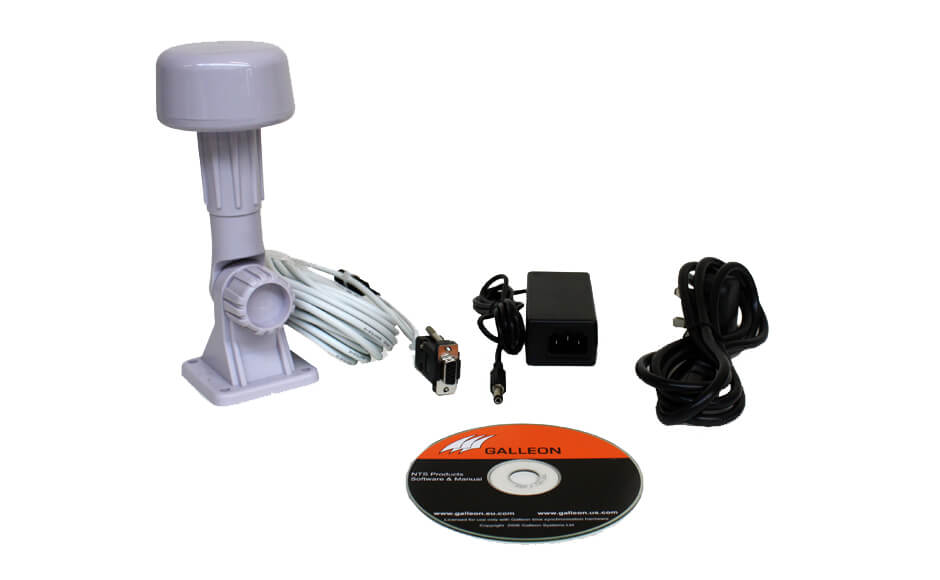

What's in the Box
- AC-500-GPS Receiver + power supply
- Instruction Manual
- NTP Software CD
Additional Extras
The following products are also available for use with the AC-500-GPS :
- Gold and Premium Support Packages
- Digital Wall Clocks
- Antenna Cable (100 to 1,000 metre rolls available)
