Request pricing » Product code: AC-400-GPS

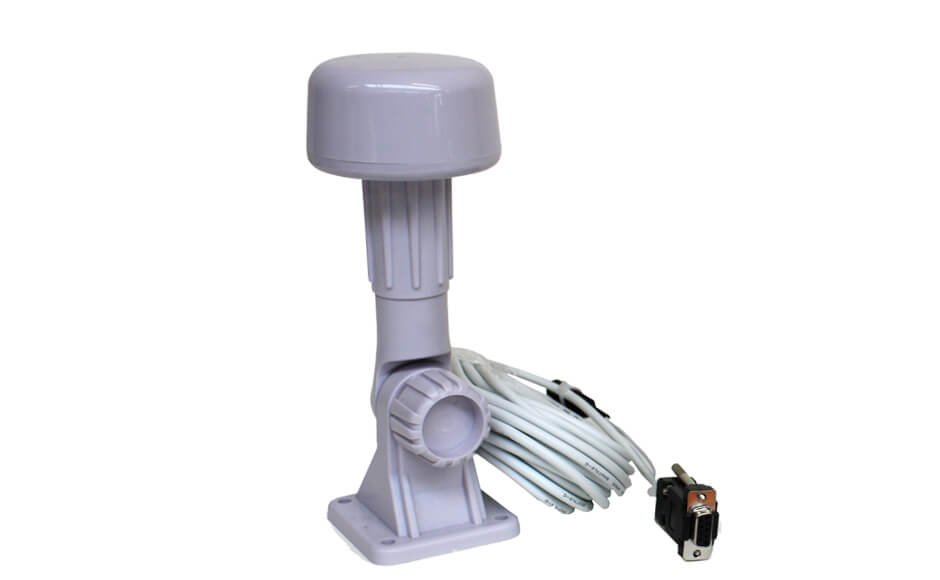

AC-400-GPS Time Receiver

Entry Level GPS computer clock remote antenna (IP65)

The AC-400-GPS is mains powered GPS antenna that can track up to 8 satellites. The antenna can be positioned up to 15m away from the computer (10m supplied) and connects to the computer by a serial interface. The supplied software driver synchronises the time on a single Windows Server or Workstation and can also synchronize PC's, workstations and other NT servers across the network.

Key Benefits

  • Accurately synchronises Windows 95, 98, NT, 2000 and UNIX solaris and Linux computer networks
  • Requires a single serial RS232 port
  • 1 year warranty

Request pricing »

Key Features

AC-400-GPS Antenna Technical Details
General L1 1575.42MHz, C/A code, 12-channel all in view tracking
Sensitivity -143dBm minimum
Update Rate 1Hz
Accuracy Position: <15m (95%) without S/A
Velocity: 0.1m/sec without S/A
Time: ±100ns synchronised to GPS time
WAAS Accuracy Position: 3m CEP
Velocity 0.05m/sec
Aquisition Cold start: 45 sec average
Warm Start: 38 sec average
Hot start: 8 sec average
Re-aquisition 0.1 sec
Data WGS-84
DGPS WAAS/EGNOS
Dynamics Altitude: 18000m Max.
Velocity: 500m/s
Acceleeration 4gMax
antenna Built in patch antenna
Operating temperature -30°C - 80°C
Operating humidity 5% - 95%
Input Current 150mA Max.
Protocols NMEA-0183 v2.20 at 4800 baud rate, 8-None-1
Interface RS-232 or RS-422
Power Input 9V - 34V DC
Cable Length 10m (can be extended)

Request pricing »

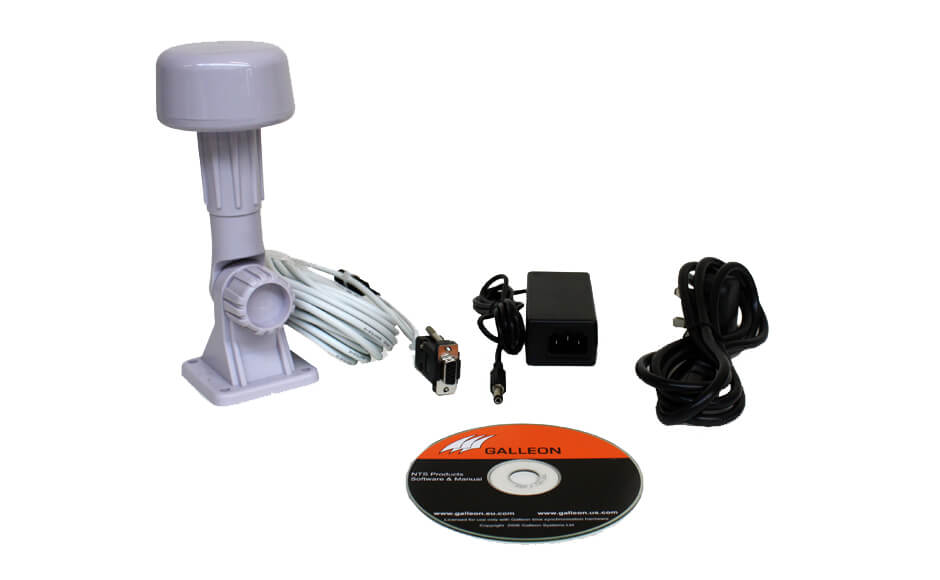

What's in the box

what is supplied with the AC-400-GPS time receiver
  • AC-400-GPS Receiver + power supply
  • Instruction Manual
  • NTP Software CD

Additional Extras

The following products are also available for use with the AC-400-GPS :

Request pricing »
