TS-700-MSF Network Time Server
MSF antenna with LCD display and software to convert an existing Windows server or workstation to a reliable stratum 1 time server.
- Consistent and Reliable Timing
- Screen with signal strength and synchronised time
- Quick and Easy Readings from the LCD Display
- Quick and User Friendly Set-Up
- Accuracy ±20ms
- Battery powered
- Three year warranty
TS-700-MSF Network Time Server
Accurate radio controlled clock with remote antenna (IP65) and Time-Sync NTP software to synchronise the time on a Windows PC and other compatible machines across the network using Galleon Systems Time-Sync NTP client. The software conforms to the Network Time Protocol (NTP) and can be set up as a Stratum 1 NTP Time Server.

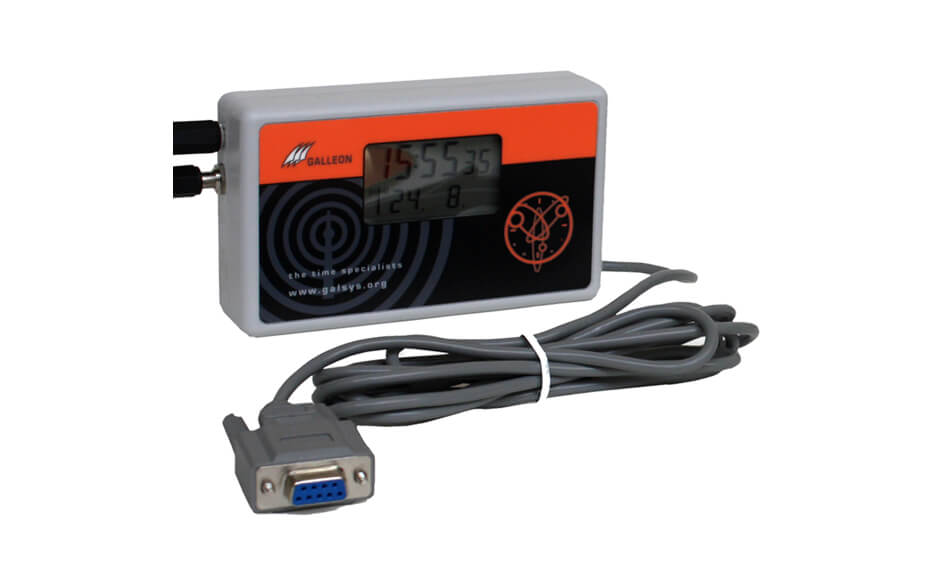

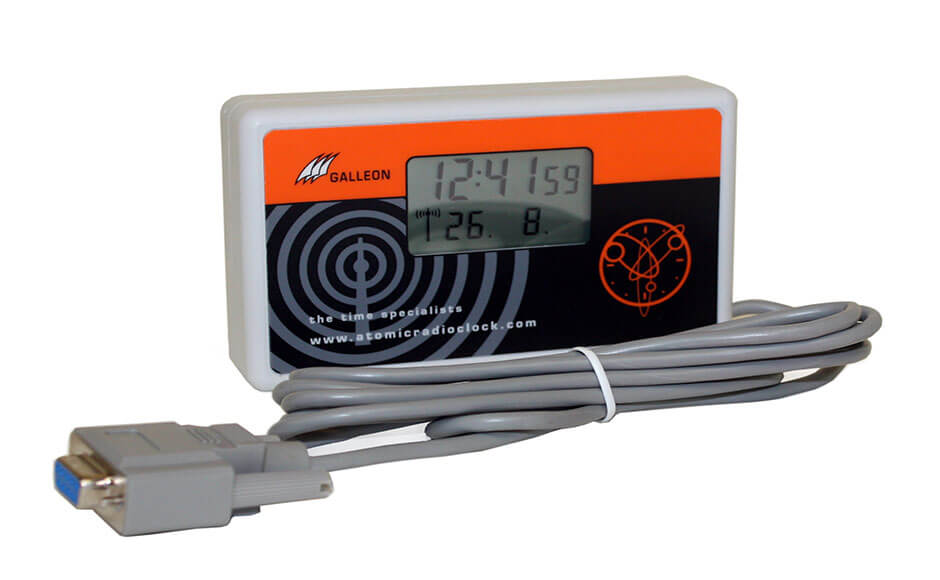

The TS-700-MSF atomic radio time controlled computer clock is a mains powered unit and has a remote radio (MSF )antenna. The antenna is fully weatherproof and can be mounted up to 200m (600 ft) away from the TS-700 clock. The TS-700 unit has an LCD screen to display the time and signal strength and connects to a computer via a serial interface (USB optional).
Key Benefits
- Consistent and Reliable Timing
- Screen with signal strength and synchronised time
- Quick and Easy Readings from the LCD Display
- Quick and User Friendly Set-Up
- Accuracy ±20ms
- Battery powered
- Three year warranty
Key Features
TS-700-MSF Network Time Server - Technical Information
TS-700 Dimensions (mm)
73 (H) x 124 (W)x 29 (D)
Construction
Plastic
Antenna
Extenal Radio receiver for the MSF Signal
Power Supply
85-260V, 47-63Hz
Protocols
SNTP via Time-Sync
Connections
RS232 Serial Interface
Display
2 line LCD
Requests Per Minute
Dependent on Hardware
Operating Temperatures
0-50°C (32-122°F)
Humidity
Max. 85%
Mount
Stand Alone
Function
Win -> Stratum 1
Network Accuracy
Network:+/- 20 Milliseconds, Typical
MSF: <2 Microseconds, Relative to UTC
Security
System Error Logging

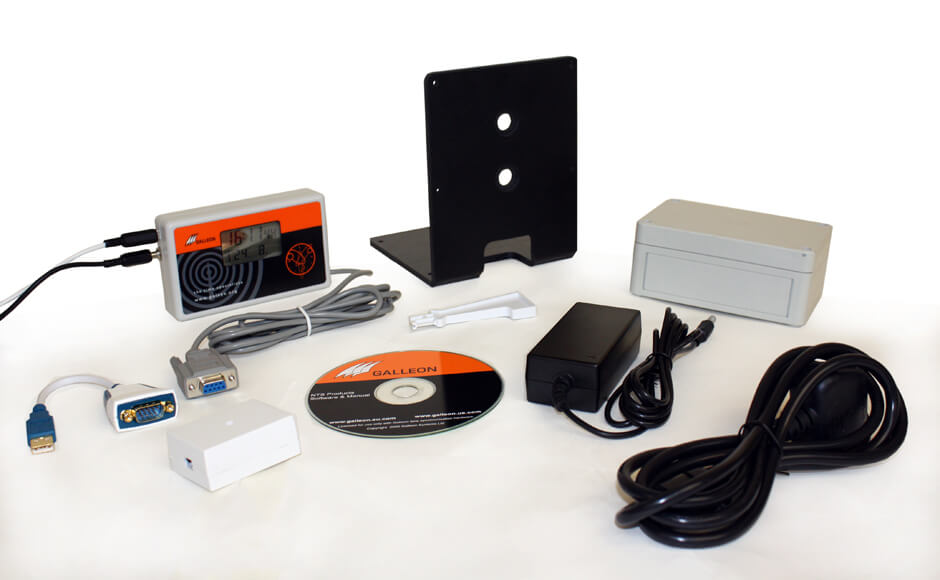

What's in the Box - TS-700-MSF
- TS-700-MSF clock + power supply
- MSF Antenna
- Instruction Manual
- NTP Software CD
- Junction Box (to extend antenna cable - if necessary)
- IDC Cable Tool (to insert extension cable into the junction box- if necessary)
Additional Extras
The following products are also available for use with the TS-700-MSF:
- Gold and Premium Support Packages
- RS232 to USB convertor
- Digital Wall Clocks
- Antenna Cable (100 to 1,000 metre rolls available)
- Additional Power Supply (Recommended from 150 metres onwards)
- Additional Software Licenses (available from 5 to 300+ clients)
