AC-700 MSF Time Receiver
A stand-alone radio controlled clock to receive and process the MSF atomic time signal to synchronise time on a single computer.
AC-700 MSF Time Receiver - Overview

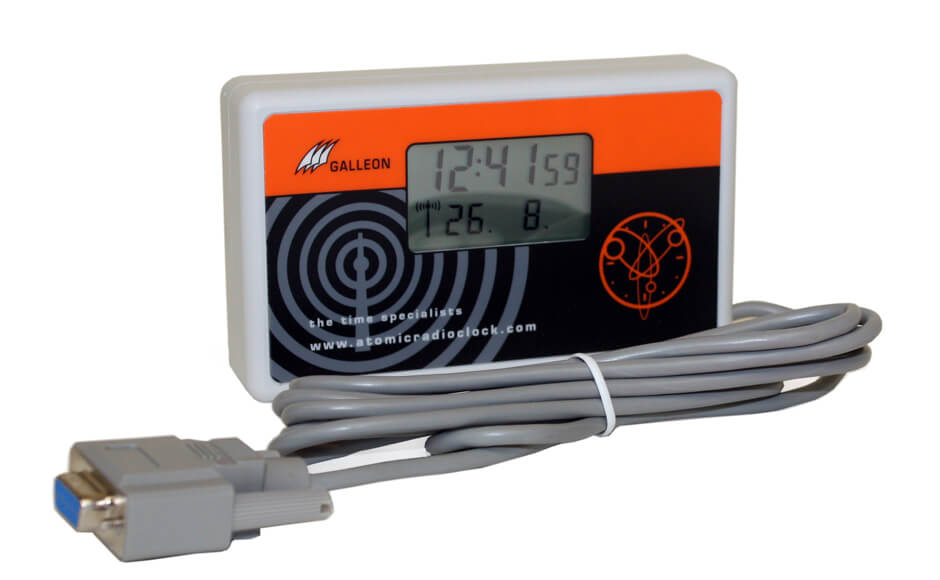

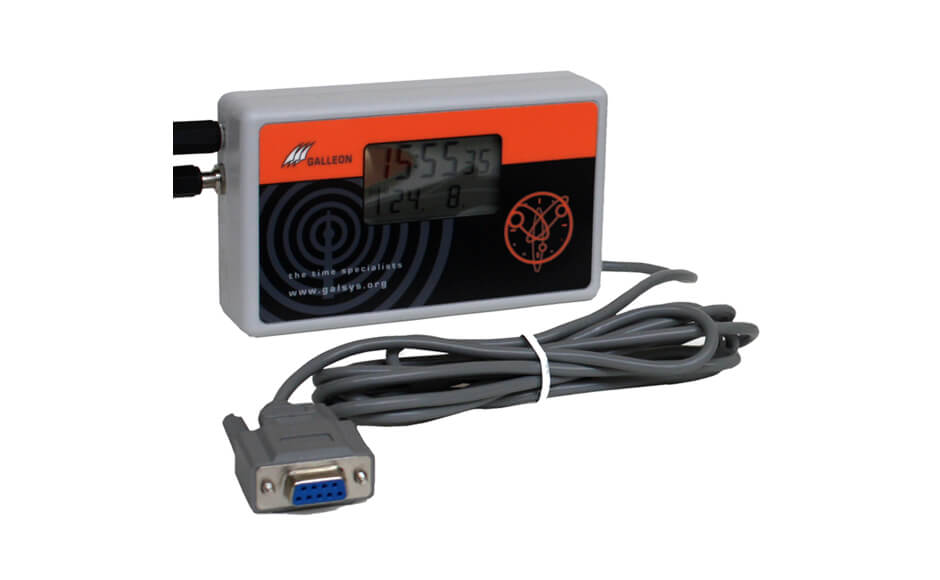

Radio controlled computer clock with remote antenna (IP65)
Server ARC with remote antenna (IP65) Consists of mains powered Atomic Radio Controlled Computer Clock with remote antenna up to 200m (600 ft) away. It has an integral Time display and signal strength indicator, serial interface (USB optional), LED signal display, power supply and converter. Synchronises to the MSF time signal transmitted form Cumbria.
The Server-ARC Atomic Radio Clock is an advanced radio time code receiver. The antenna is rated to IP65 and can be wall mounted indoors or outdoors up to 100m from the host computer. The unit is specifically designed to provide good signal reception in areas with a poor radio signal.
Time-Sync NTP can be used to turn any Windows NT, 2000, XP or Server 2003 machine into a stratum 1 NTP time server resource for your network. It can be used to synchronise the time on any NTP network clients on a TCP/IP network to within milliseconds of the correct time.
Key Benefits
- Provides accurate timing for any number of network time clients
- Reliable, accurate and secure timing resource, inside your firewall
- Ideal for transaction processing, time & attendance and access control applications
Key Features
| Power supply | Mains |
|---|---|
| Antenna | Remote (up to 100m) |
| Interface | PC interface |
| Reception sensitivity | <50uV/m |
| Start of the time signal synchronisation |
a. Automatically b. Command from the PC |
| Connection and data transfer | RS232 Serial interface at 300bps |
| Operating temperature range | 0°C – 50°C |
| Connector cable | 1.5m; 9-pole Sub-D plug |
AC-700 MSF Time Receiver - Additional Images

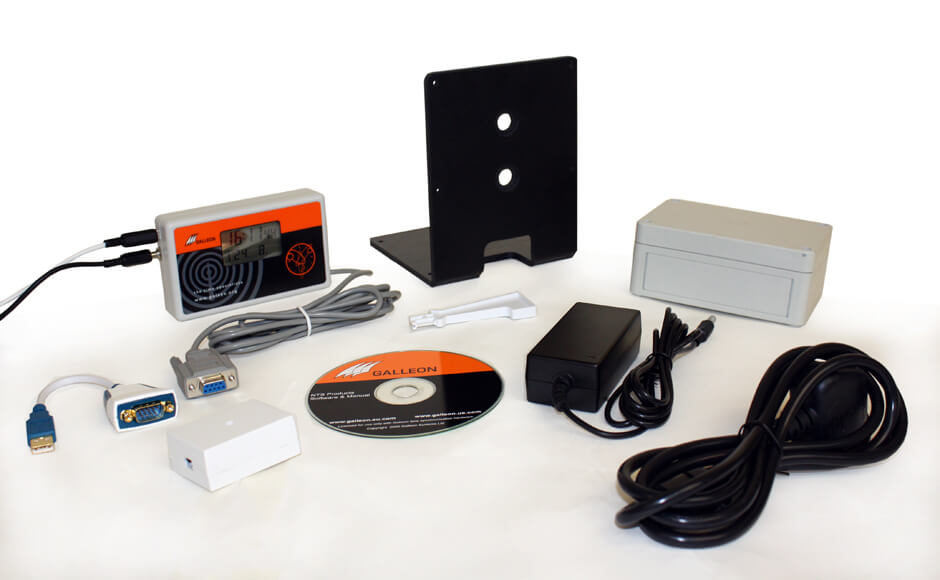

What's in the box
- AC-700 MSF clock + power supply
- MSF Antenna
- Instruction Manual
- NTP Software CD
- Junction Box (to extend antenna cable - if necessary)
- IDC Cable Tool (to insert extension cable into the junction box- if necessary)
Additional Extras
The following products are also available for use with the TS-700 GPS :
- Gold and Premium Support Packages
- RS232 to USB convertor
- Digital Wall Clocks
- Antenna Cable (100 to 1,000 metre rolls available)
- Additional Power Supply (Recommended from 150 metres onwards)
- TimeSynch SNTP Client Software (User Licenses available from 5 to 300+)
- TimeSynch NTP Uni-Cast Software (User Licenses available from 5 to 300+)
