NTS-8000-GPS GPS NTP Time Server

Precise and reliable Windows Server Stratum 1 GPS time source NTP Time Server for large networks.

True Stratum 1 NTP Time Server
GPS time reference input
Easily configured via a proprietary windows configuration utility pre-installed on the server
Handles >3,000 NTP requests per minute
Syslog error reporting
Industry leading 6 year warranty
Free product lifetime support

6 year warranty, lifetime support, CE and RoHS icons

Request pricing » Product code: NTS-8000-GPS

NTP Network Time Server with GPS time receiver

The NTS-8000-GPS is a dedicated NTP time server for TCP/IP networks, which combines a GPS clock/receiver with a Windows server based computer allowing all the standard options available with Windows.

The unit connects directly to your network via a CAT5 Ethernet connection and fits in a standard 19" rack. This NTP server incorporates a GPS clock and remote GPS antenna. The antenna tracks up to 12 (of 24) satellites for increased precision and is fully weather proof (IP65) as it must be installed externally. The antenna can be mounted up to 1,000m (3,000ft) from the unit using an appropriate (optional) antenna extension kit.

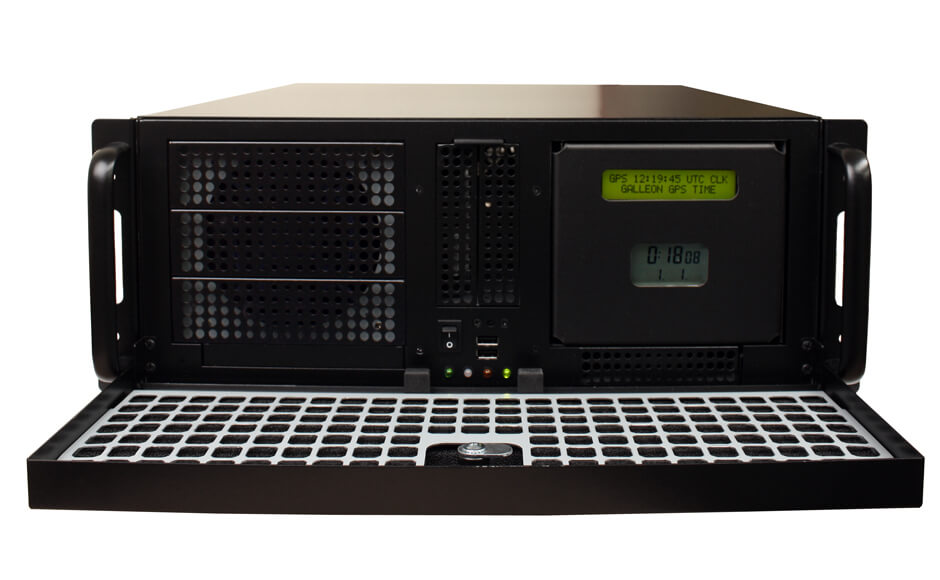

The NTS-8000-GPS has a backlit LCD display to show run-time information for both the GPS subsystem and the NTP server and to aid installation. The Software drivers conform to the Network Time Protocol Version 4 (NTP V4) and are available for uni-cast, broadcast or multi-cast NTP time synchronization. Configuration and management of the unit is straight forward via a network interface. The IP address of the unit can be configured by using DHCP to assigning an IP address automatically or a fixed IP address can be used.

The NTS-8000-GPS can be built with multiple (currently up to six) Ethernet ports enabling it to serve time to multiple independent networks and can handle more than 3,000 NTP requests per minute per network, making it the first choice for providing accurate time information to very large networks with thousands of clients!

Key Benefits

Ready-to-operate Secure Stratum 1 NTP Time Server
Includes active GPS antenna
Support for NTP v2, NTP v3, NTP v4 and SNTP compatible clients
Easily configured via a proprietary windows configuration utility pre-installed on the server
Multiple RJ-45 Ethernet interfaces 10/100 MBit
Can handle more than 3,000 NTP requests per minute per port, ideal for large networks
MD5 authentication for advanced security
Able to Peer with other NTP time servers for enhanced synchronization security
Front Panel display for Time and Satellite and Radio time Status
SNTP and NTP protocol support
Syslog error reporting
6 years warranty

Request pricing »

Key Features

Product Specification for the NTS-8000-GPS time server
Receiver:	Active 12 channel GPS Antenna
Timing Accuracy:	Network: ± 12 milliseconds, typical GPS: <1 microseconds, relative to UTC
NTP Time Requests:	>3,000 requests per minute
Supported Networks:	Can supply time to up to 6 separate networks
Housing:	Standard 19" rackmount (2U)
Display:	LC-display, 2 x 20 characters, with backlight
Operating System:	Windows Server 2008 R2
Protocols (NTP & SNTP):	NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131) SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network Interface:	Multiple (up to 6) RJ-45 Network Connection 10/100 MBit
Power supply:	85 - 260V, 47 - 63Hz
Operating Temperature:	0-50°C / 32-122°F
Operating Humidity:	Max. 85%
