NTP Clock

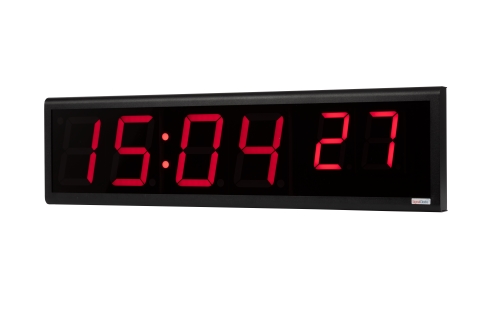

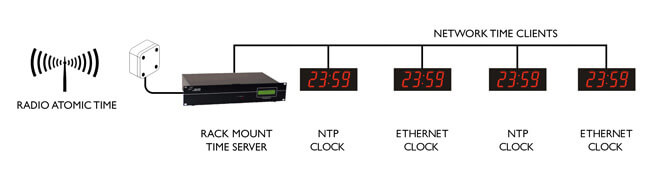

NTP Clock with HH:MM:SS Now all clocks can display the same, accurate, legal time. Our commercial NTP clock is specifically designed for applications where precision and reliability are of most importance. These clocks may be used as accurate stand-alone time displays. They can also be synchronized, using hard wire atomic clocks, so that all clocks display the same time. Additionally, a standalone atomic time standard repeater may be used to transmit the true legal time to all slave clocks. This means that all clocks will not only display the same time, but the time displayed is the true legal UK time. The NTP clocks are in use where accurate, synchronized time is required.

Key Features

Ethernet Clock Synchronization and Control

The Ethernet interface allows the clock to be connected to a computer network. Network Time Protocol (NTP) and Universal Datagram Protocol (UDP) are both available at the same time. Switching between the two methods is not required.

NTP is a uniform method of sending time over a computer network. By default, the clock will act as a client to public or local NTP time servers. The clock can also be configured to receive NTP broadcasts. NTP provides Universal Coordinated Time (UTC) to the clock. The clock implements offsets and daylight savings rules to display the correct local time.

Characteristics:

Display:	4 Digit, 7 Segment Red LED
Display Format:	68 User Defined Display Formats. Plus Selectable 12 or 24 Hour Format
Clock Accuracy:	Up to 1 second per year with included high accuracy crystal oscillator at 0°C to 40°C. For increased accuracy, a time receiver option is required. Available time receivers include GPS, CDMA, IRIG-B, SMPTE, PC and Ethernet.
Operating Modes::	Real time hours and minutes and Seconds
Digit Height:	100mm Characters
Visibility:	Up to 50 meters
Power Requirement:	24v AC/DC, 100-240v AC 50-60 cycle
Dimensions:	150mm Height x 420mm Width x 60mm Depth
Operating Temperature:	0°C to 40°C
Humidity:	0% to 95% Non-Condensing
Battery Backup:	10 Year Lithium Battery
Construction:	Aluminum Frame in Anodized Black, Silver or Gold with anti-glare plexiglass front lens. Includes sawtooth picture frame hangars and secure eyelets for surface mounting.

For more information contact Galleon
